Cub Cadet 80
The Cub Cadet 80 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: infinite forward and reverse. Operating weight: 430 lbs 195 kg.
Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
infinite forward and reverse
Operating Weight
430 lbs
195 kg
Overview
 | 1975 - 1979
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of International Harvester) |
Lawn tractor | |
Variants | |
|---|---|
Cadet 80 | hydrostatic |
Cadet 81 | gear drive |
Cub Cadet 80 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Cub Cadet 80 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 43 inches
109 cm |
Weight | 430 lbs
195 kg |
Front tire | 13x5.00-6 |
Rear tire | 18x9.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1975 International Cadet Lawn Tractors published by International Harvester | |
A Complete Reference to International Power Lawn Products published in 1977, by International Harvester | |
Special Duty Equipment published in 1977, by International Harvester | |
Cadet Lawn Tractors published in 1976, by Cub Cadet | |
1978 Buyer's Guide published by International Harvester | |
1979 Buyer's Guide published by International Harvester |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 191707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Air cleaner | oiled foam |
Starter | electric |
Starter volts | 12 |
Cub Cadet 80 Engine | |
|---|---|
 |
Transmission
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet 80 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 18x9.50-8 |
Dimensions | |
|---|---|
Wheelbase | 43 inches
109 cm |
Length | 61 inches
154 cm |
Shipping weight | 430 lbs
195 kg |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade |
36" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos

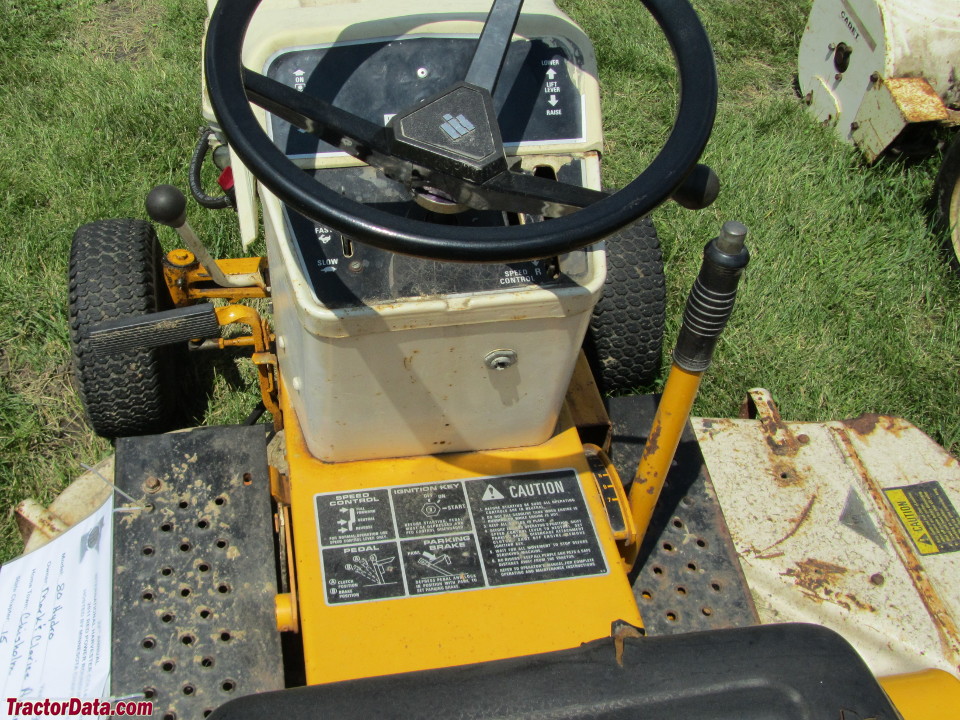

Cub Cadet 80
Cub Cadet 80
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 80.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 80 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 80.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
