Cub Cadet XT2 LX46
The Cub Cadet XT2 LX46 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The rated power output is 21.5 hp 16.0 kW. Transmission: Tuff Torq K46. Operating weight: 440 lbs 199 kg.
Engine Power
21.5 hp
16.0 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Tuff Torq K46
Operating Weight
440 lbs
199 kg
Cub Cadet Lawn Tractors Cub Cadet XT2 LX46 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2015 -
XT2 Enduro SeriesLawn tractor |
|---|---|
2015 - | |
XT2 Enduro Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Original price was $2,000 in 2015 | |
Variants | |
|---|---|
XT2 LX46 | Kawasaki engine, stamped deck |
XT2 LX46 KH | Kohler engine, stamped deck |
XT2 LX46 FAB | Kawasaki engine, fabricated deck |
Cub Cadet XT2 LX46 Engine | |
|---|---|
21.5HP Kawasaki 726cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Cub Cadet XT2 LX46 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Disc brakes | |
Open operator station. Optional sunshade. Optional soft-side weather cab. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 440 lbs
199 kg |
Front tire | 15x6 |
Rear tire | 20x8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
New XT Enduro Series Lawn and Garden Tractors published in 2015, by Cub Cadet |
Engine
Engine Detail — 726 cc / 44.3 ci Gasoline
Manufacturer | Kawasaki FR651V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 726 cc
44.3 ci |
Bore/Stroke | 3.071x2.992 inches
78 x 76 mm |
Power (gross) | 21.5 hp
16.0 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.1 qts
2.0 L |
Transmission
Transmission — Tuff Torq K46
Transmission | Tuff Torq K46 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet XT2 LX46 Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 20x8 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 68 inches
172 cm |
Height | 42.5 inches
107 cm |
Weight | 440 lbs
199 kg |
Front axle | Cast-iron |
Attachments
Attachment overview | |
|---|---|
46" mid-mount mower deck | |
Snowblower | |
Blade |
46" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual with spring-assist lift | |
Cutting width | 46 inches
116 cm |
Overall width | 54 inches
137 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Cut positions | 12 |
Photos

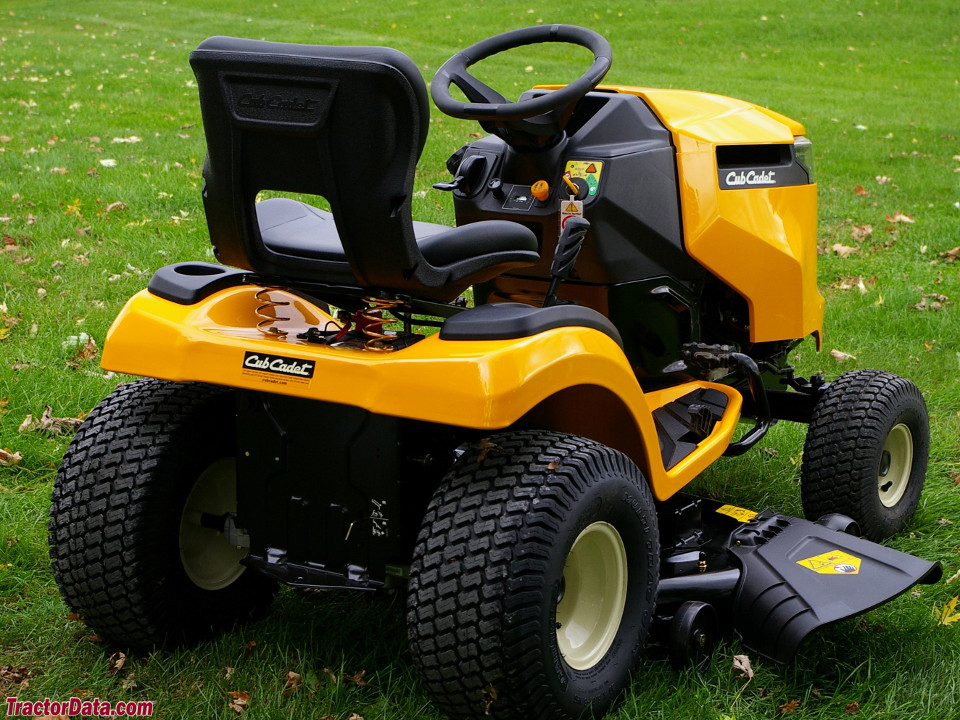

Cub Cadet XT2 LX46 with stamped deck.

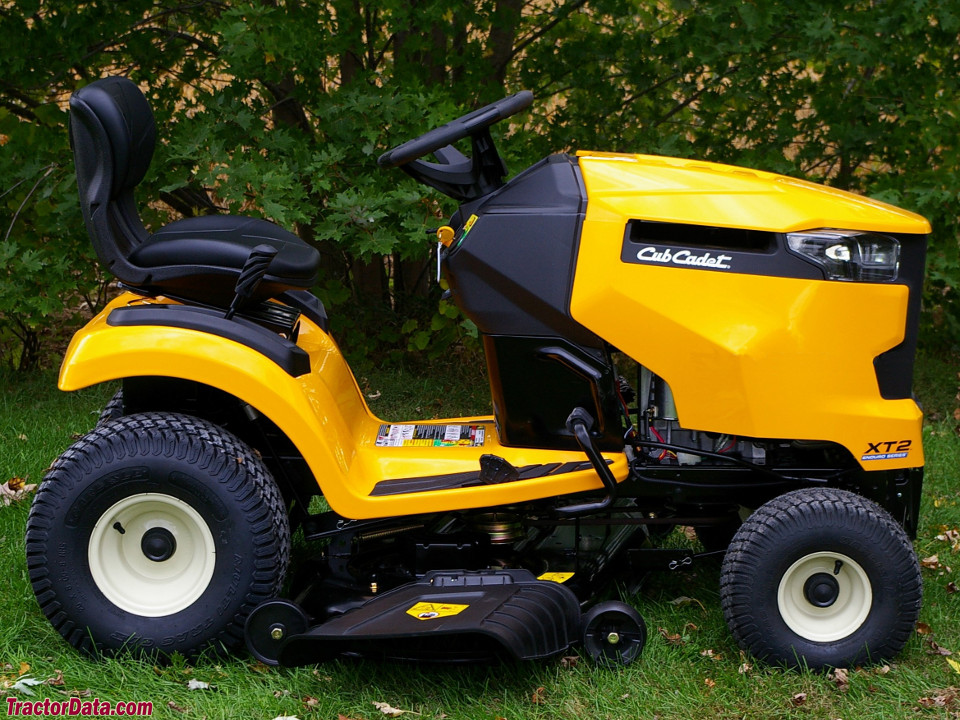

Cub Cadet XT2 LX46 with stamped deck.

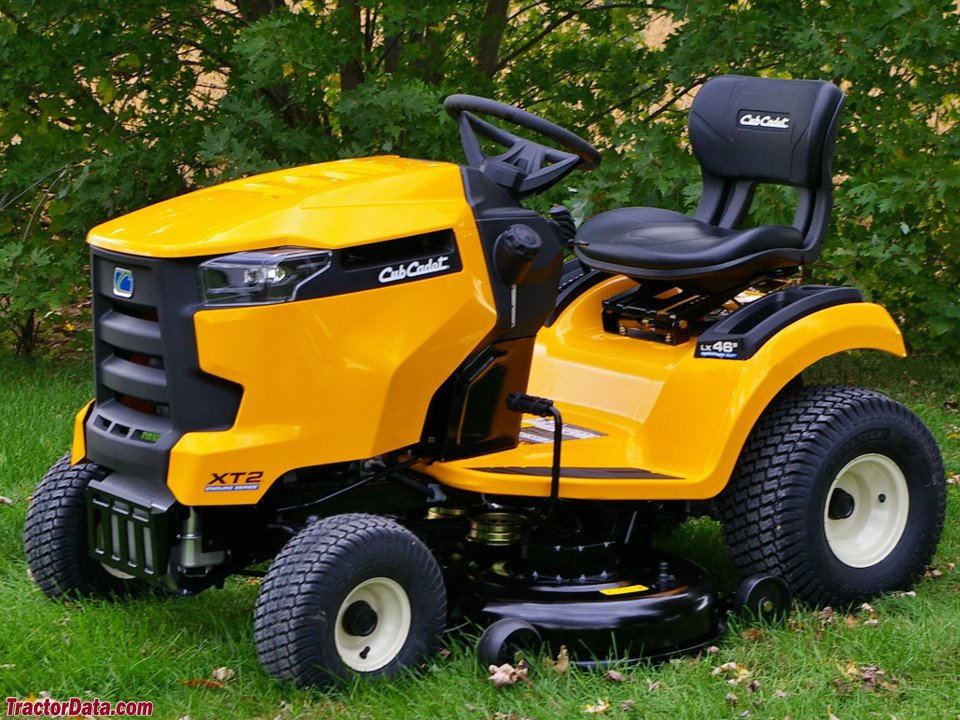

Cub Cadet XT2 LX46 with stamped deck.
Cub Cadet XT2 LX46 with stamped deck.

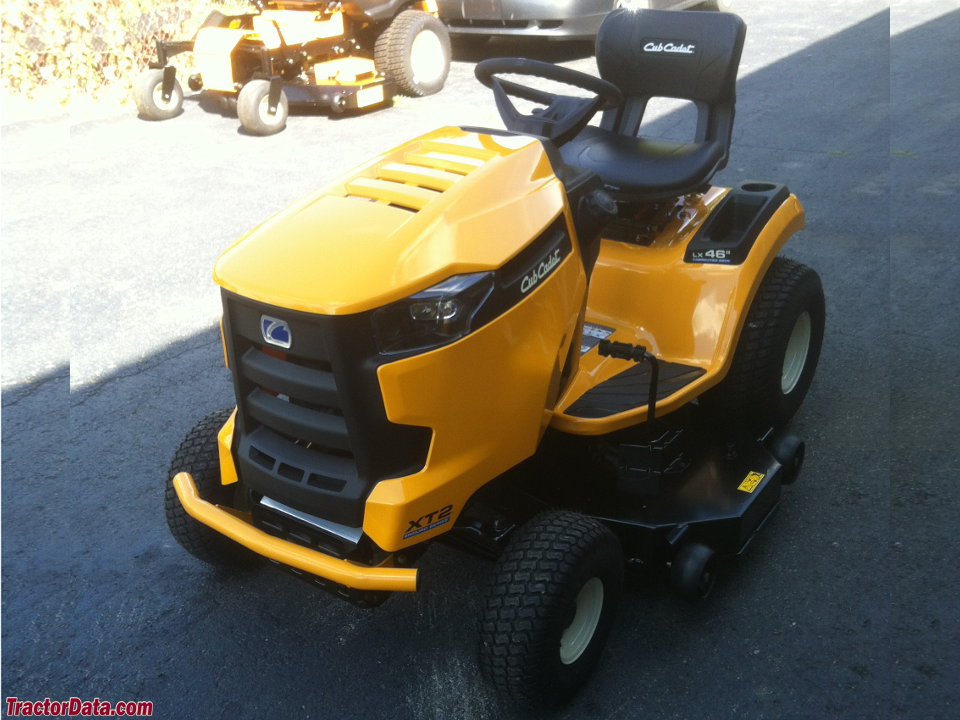

Cub Cadet XT2 LX46 with fabricated deck.
