Cub Cadet 1170
The Cub Cadet 1170 is a tractor produced by Cub Cadet Lawn Tractors. The listed engine power is Gasoline (gross): 17.5 hp / 13.0 kW. Transmission: infinite forward and reverse. Operating weight: 490 lbs 222 kg.
Overview
 | 2000 - 2002
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Original price | $1,300 (2000 ) |
$1,400 (2001 ) | |
Cub Cadet 1170 Engine | |
|---|---|
17.5HP Briggs & Stratton 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Cub Cadet 1170 Transmission | |
|---|---|
CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 490 lbs
222 kg |
Front tire | 15x6 |
Rear tire | 20x8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 1000 Tractors published in 2001, by Cub Cadet | |
Lawn Tractors published in 2000, by Cub Cadet |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 17.5 hp
13.0 kW |
Starter | electric |
Starter volts | 12 |

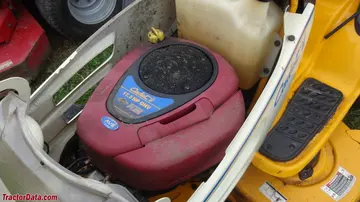

Cub Cadet 1170 Engine | |
|---|---|
 | |
Image courtesy of White's Farm Supply |
Transmission
Transmission — infinite forward and reverse belt-driven CVT
Type | belt-driven CVT |
Gears | infinite forward and reverse |
Dimensions
Cub Cadet 1170 Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 20x8 |
Dimensions | |
|---|---|
Weight | 490 lbs
222 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Photos

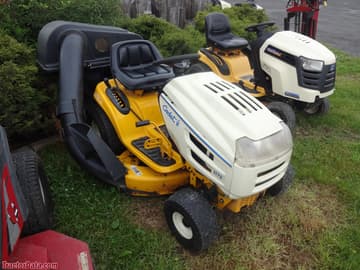

Cub Cadet 1170

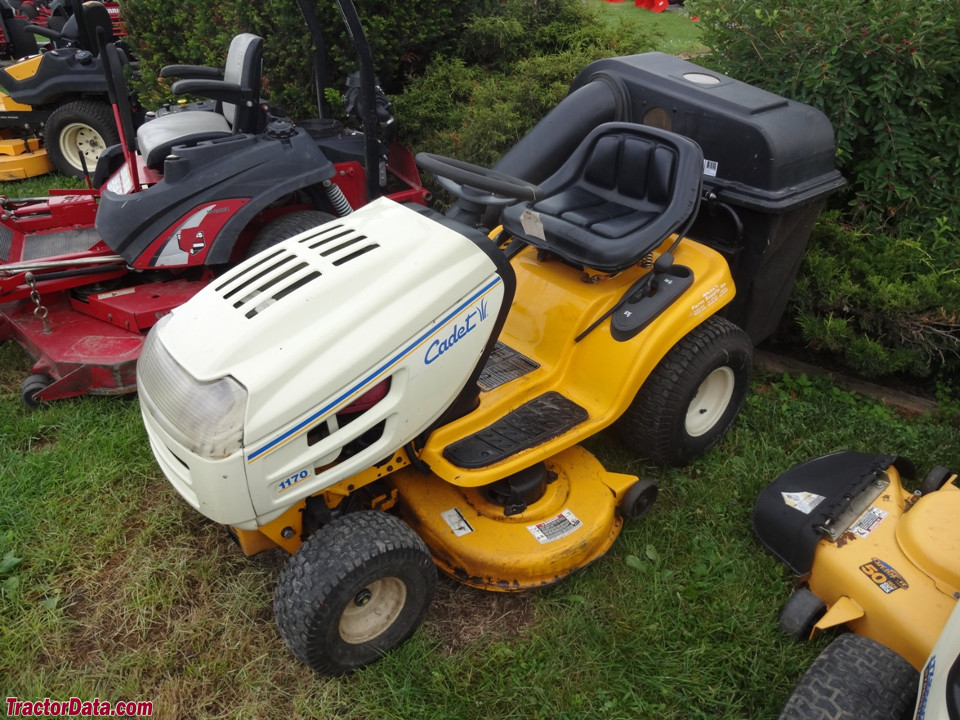

Cub Cadet 1170

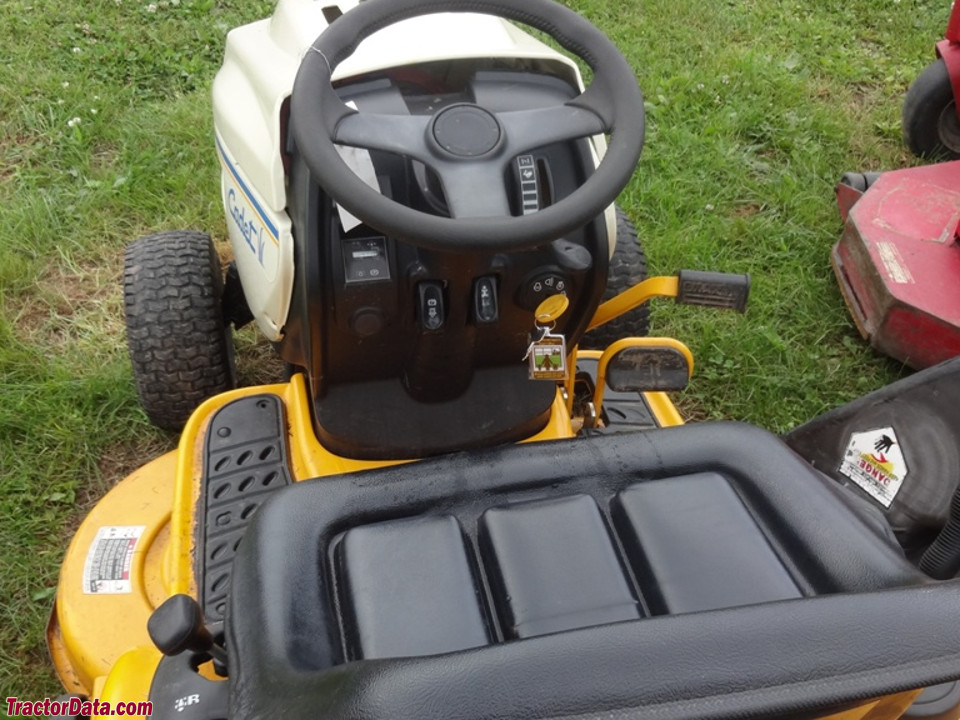

Cub Cadet 1170 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet 1170 based on its 17.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 1170.
Estimated Continuous Field Runtime: 2.2 hrs
Approximately 2.2 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Cub Cadet Lawn Tractors Cub Cadet 1170 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 1170.
Converted Equivalents:
Direct Competitor Comparison
Compare Cub Cadet 1170 against same-era industry alternatives in the same horsepower class.
Cub Cadet 1170
