Deutz-Fahr Agrotron 210

The Deutz-Fahr Agrotron 210 is a tractor produced by Deutz Fahr. It is equipped with a 436.1 ci 7.1 L engine. The listed engine power is Diesel (net): 197.1 hp / 147.0 kW. Transmission: ZF 7300. Operating weight: 18541 lbs 8410 kg.

Engine Power

Diesel (net): 197.1 hp / 147.0 kW

Fuel & Capacities

95.1 gal 360.0 L

Transmission

ZF 7300

Operating Weight

18541 lbs 8410 kg

Overview

	2003 - 2004 Agrotron SeriesRow-Crop tractor Agrotron Series Row-Crop tractor

Production
Manufacturer	Deutz-Fahr
Row-Crop tractor

Deutz-Fahr Agrotron 210 Engine
Deutz 7.1L 6-cyl diesel
Fuel tank	95.1 gal 360.0 L
	145.3 galOptOptional 550.0 L
Engine details ...

Deutz-Fahr Agrotron 210 Transmission
40-speed four-speed power shift
Transmission details ...

Deutz-Fahr Agrotron 210 Power
Engine (net)	197.1 hp 147.0 kW

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center load sensing
Pressure	2901 psi 200.0 bar
Pump flow	31.7 gpm 120.0 lpm

Tractor hitch
Rear Type	III
Rear lift	23100 lbs 10478 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
	1000 (1.75)
Front PTO	independent
Clutch	electro-hydraulic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	121.6 inches 308 cm
Weight	18541 lbs 8410 kg
Front tire	520/70R34
Rear tire	710/70R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References

Agrotron 210-235-265 published in 2004, by Deutz-Fahr

Engine

Engine Detail — 436.1 ci / 7.1 L Diesel

Manufacturer	Deutz BF6M1013EC
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	436.1 ci 7.1 L
Bore/Stroke	4.25x5.12 inches 108 x 130 mm
Rated Power (net)	197.1 hp 147.0 kW
Maximum Power (net)	207.9 hp 155.0 kW
Rated RPM	2300
Torque	638 lb-ft 865.1 Nm
Torque RPM	1200
Starter	electric
Starter volts	12

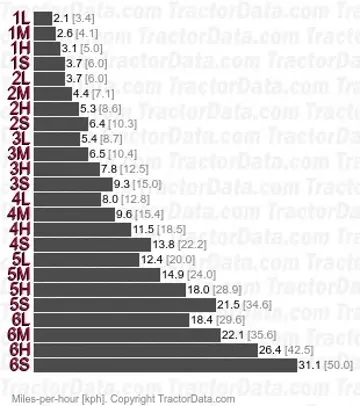

Transmission

Transmission — ZF 7300

Transmission	ZF 7300
Type	four-speed power shift
Gears	40 forward and reverse
Four power shift speeds in six ranges with power shuttle, plus an additional four creeper ranges.

Dimensions

Deutz-Fahr Agrotron 210 Tires
Standard tires (ag)	Front: 520/70R34. Rear: 710/70R42
Optional tires (ag)	Front: 480/70R34. Rear: 650/85R38
	Front: 520/70R30. Rear: 620/70R42
	Front: 520/70R30. Rear: 710/70R38
	Front: 600/65R30. Rear: 650/65R42
	Front: 600/70R30. Rear: 710/70R38

Dimensions
Wheelbase	121.6 inches 308 cm
Length	196.9 inches 500 cm
Height (cab)	128.2 inches 325 cm
Shipping weight	18541 lbs 8410 kg

Photos

Deutz-Fahr Agrotron 210 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr Agrotron 210 based on its 197.1 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr Agrotron 210.

Estimated Continuous Field Runtime: 9.3 hrs

Approximately 9.3 hours of continuous field operation at ~75% rated power on a full tank (95.1 gal / 360 L).

Estimated 75% Load Fuel Burn~10.2 gal/hr (38.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr Agrotron 210 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr Agrotron 210.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)197.1 hp

Kilowatts (kW)147 kW

Metric Horsepower (PS / CV)199.8 PS
