Deutz-Fahr DX 3.60

The Deutz-Fahr DX 3.60 is a tractor produced by Deutz Fahr. It is equipped with a 230.05 ci 3.8 L engine. The rated power output is 65 hp 48.5 kW. Transmission: Dual Split. Operating weight: 6758 to 7441 pounds.

Overview

	1986 - 1995 DX 3 SeriesUtility tractor
1986 - 1995
DX 3 Series
Utility tractor

Production
Manufacturer	Deutz-Fahr
Utility tractor
Built in Germany

Deutz-Fahr DX 3.60 Engine
Deutz 3.8L 4-cyl diesel
Fuel tank	21.9 gal 82.9 L
Engine details ...

Deutz-Fahr DX 3.60 Power
Engine	65 hp 48.5 kW

Mechanical
Two- or four-wheel drive
Power steering
Star cab.

Hydraulics
Pump flow	10.6 gpm 40.1 lpm

Tractor hitch
Rear Type	II
Rear lift	5292 lbs 2400 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	88.6 inches 225 cm
Weight	6758 to 7441 pounds
Front tire	7.50-18
2WD Rear tire	16.9R30
Full dimensions and tires ...

References
DX3 StarCab published in 1992, by Deutz-Fahr

Engine

Engine Detail — 230.05 ci / 3.8 L Diesel

Manufacturer	Deutz F4L 912
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	230.05 ci 3.8 L
Bore/Stroke	3.94x4.72 inches 100 x 120 mm
Power	65 hp 48.5 kW
Rated RPM	2350

Transmission

Transmission options
16-speed two-speed power shift
24-speed two-speed power shift

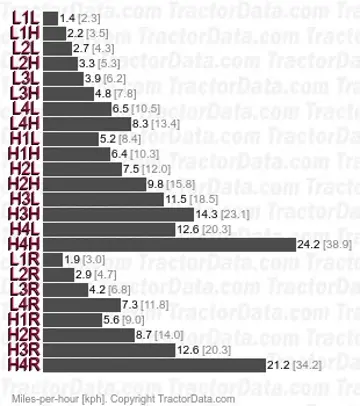

Transmission — Dual Split

Transmission	Dual Split
Type	two-speed power shift
Gears	16 forward and 8 reverse
Four gears in two ranges with two-speed power shift.

Transmission — Dual Split

Transmission	Dual Split
Type	two-speed power shift
Gears	24 forward and 8 reverse

Dimensions

Deutz-Fahr DX 3.60 Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 16.9R30
4WD Standard tires (ag)	Front: 11.2R24. Rear: 16.9R30

Dimensions
Wheelbase	88.6 inches 225 cm
Length	146.9 inches 373 cm
Height	99.6 inches 252 cm
2WD Weight	6758 lbs 3065 kg
4WD Weight	7441 lbs 3375 kg

Photos

Deutz-Fahr DX 3.60
