Ebro 480
The Ebro 480 is a tractor produced by Ebro. It is equipped with a 248 ci 4.1 L engine. The listed engine power is Diesel (listed): 78.9 hp / 58.8 kW. Transmission: 6 forward and 2 reverse.
Engine Power
Diesel (listed): 78.9 hp / 58.8 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Overview
 | 1975 - ???? | 1975 - ???? |
|---|
1975 - ???? |
|---|
Production | |
|---|---|
Manufacturer | Ebro |
Built in Spain | |
Ebro 480 Engine | |
|---|---|
Perkins 4.1L 4-cyl diesel | |
Engine details ...  |
Ebro 480 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Ebro 480 Power | |
|---|---|
Engine | 78.9 hp
58.8 kW |
PTO (claimed) | 79 hp
58.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
| 1975 - ???? | 1975 - ???? |
|---|
1975 - ???? |
|---|
Engine Detail — 248 ci / 4.1 L Diesel
Manufacturer | Perkins A4.248 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 248 ci
4.1 L |
Bore/Stroke | 3.923x5.00 inches
100 x 127 mm |
Power | 78.9 hp
58.8 kW |
Transmission
| 1975 - ???? | 1975 - ???? |
|---|
1975 - ???? |
|---|
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Dimensions
| 1975 - ???? | 1975 - ???? |
|---|
1975 - ???? |
|---|
Ebro 480 Tires |
|---|
Dimensions |
|---|
Photos

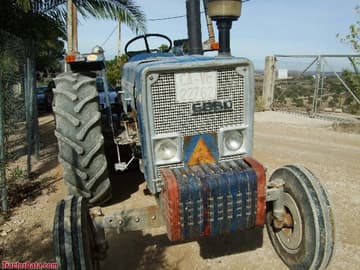

Ebro 480
Ebro 480
Recommended Implements & Sizing Guide
Engineering recommendations for Ebro 480 based on its 78.9 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ebro 480.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ebro 480 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ebro 480.
Converted Equivalents:
Horsepower (HP)78.9 hp
Kilowatts (kW)58.8 kW
Metric Horsepower (PS / CV)80 PS
Direct Competitor Comparison
Compare Ebro 480 against same-era industry alternatives in the same horsepower class.
Current Model
Ebro
Ebro 480
Engine Power:Diesel (listed): 78.9 hp / 58.8 kW
★ Baseline Reference
