Fendt 207

The Fendt 207 is a tractor produced by Fendt. It is equipped with a 197.5 ci 3.2 L engine. The listed engine power is Diesel (net): 68.4 hp / 51.0 kW; Diesel (gross): 71.1 hp / 53.0 kW. Transmission: 21 forward and reverse. Operating weight: 6460 lbs 2930 kg.

Overview

	2003 - 2009 Farmer 200 SeriesUtility tractor Farmer 200 Series Utility tractor

Production
Manufacturer	Fendt (a part of AGCO)
Utility tractor

Variants
207S	utility
207V	ultra-narrow
207F	narrow

Fendt 207 Engine
Deutz 3.2L 3-cyl diesel
Fuel tank	15.9 gal 60.2 L
Engine details ...

Fendt 207 Power
Engine (gross)	71.1 hp 53.0 kW
Engine (net)	68.4 hp 51.0 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic disc brakes
Cab standard with available heat and air-conditioning.

Hydraulics
Type	open center
Pressure	2900 psi 200.0 bar
Valves	2 or 3
Pump flow	12.4 gpm 46.9 lpm
	19.6 gpmOptOptional 74.2 lpm

Tractor hitch
Rear Type	2
Front Hitch	optional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750/1000
	540/750/ground OptOptional
Front PTO	independent OptOptional
Front PTO Type	540
	1000

Dimensions & Tires
Wheelbase	82.8 inches 210 cm
Weight	6460 lbs 2930 kg
Front tire	335/80R18
Rear tire	16.9R28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Charging volts	14
Battery volts	12
Battery AH	88

References
Farmer 206S 207S 208S 209S published in 2006, by Fendt

Engine

Engine Detail — 197.5 ci / 3.2 L Diesel

Manufacturer	Deutz
Configuration	turbocharged diesel, 3-cylinder, air-cooled
Displacement	197.5 ci 3.2 L
Bore/Stroke	4.02x5.20 inches 102 x 132 mm
Rated Power (net)	68.4 hp 51.0 kW
Rated Power (gross)	71.1 hp 53.0 kW
Rated RPM	2300
Torque	194.7 lb-ft 264.0 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission options
21-speed synchromesh
21-speed shuttle

Transmission — 21 forward and 6 reverse synchromesh

Type	synchromesh
Gears	21 forward and 6 reverse
Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40).

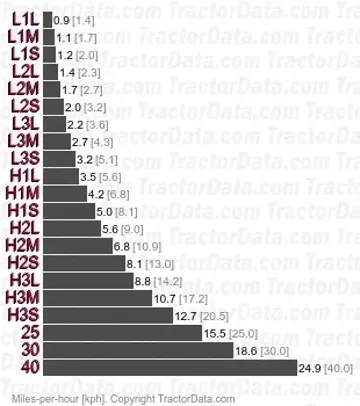

Transmission — 21 forward and reverse shuttle

Type	shuttle
Gears	21 forward and reverse
Three gears (1-3) in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40) and mechanical shuttle.

Dimensions

Fendt 207 Tires
Standard tires (ag)	Front: 335/80R18. Rear: 16.9R28
Optional tires (ag)	Front: 311.2R20. Rear: 380/85R30
	Front: 405/70R20. Rear: 16.9R30
	Front: 405/70R20. Rear: 420/85R30
	Front: 405/70R20. Rear: 480/70R30
	Front: 420/65R20. Rear: 480/70R30
	Front: 420/65R20. Rear: 540/65R30

Dimensions
Wheelbase	82.8 inches 210 cm
Length	140.4 inches 356 cm
Width	75.8 inches 192 cm
Height	97.4 inches 247 cm
Weight	6460 lbs 2930 kg
Max weight	11684 lbs 5299 kg
Front tread	58.8 inches 149 cm
Rear tread	59.1 inches 150 cm

Photos

Fendt 207 tractor photo
