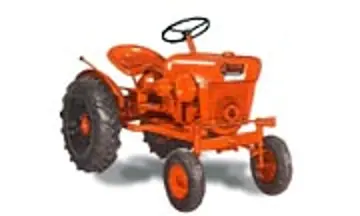

Economy Jim Dandy 14HP

The Economy Jim Dandy 14HP is a tractor produced by Economy Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Borg-Warner T92. Operating weight: 690 lbs 312 kg.

Overview

	1968 - 1977 Model year 1968-19721973-1977 Garden tractor

Production
Manufacturer	Economy (a part of Engineering Products Company)
Garden tractor
Built in Waukesha, Wisconsin, USA

Economy Jim Dandy 14HP Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Mechanical
Two-wheel drive
Final drives	spur bull gears
Steering	manual
Mechanical band brakes
Open operator station.

Hydraulics
Type	open center OptOptional
Pressure	1000 psi 69.0 bar
Pump flow	1.8 gpm 6.8 lpm

Tractor hitch
Type	manual-lift rear hitch
	hydraulic-lift optional

Power Take-off (PTO)
Front PTO	continuous
Clutch	none

Dimensions & Tires
Wheelbase	52.5 inches 133 cm
Weight	690 lbs 312 kg
Front tire	6.50-8
Rear tire	8.00-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12
Battery AH	32

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler K321S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power	14 hp 10.4 kW
Rated RPM	3600
Torque	23.8 lb-ft 32.3 Nm
Torque RPM	2200
Starter	electric
Starter volts	12
Oil capacity	2.5 qts 2.4 L

Transmission

Transmission options
3-speed gear
9-speed gear

Transmission — Borg-Warner T92

Transmission	Borg-Warner T92
Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	152.4mm mechanical dry disc
With 7.00-16 rear tires.

Transmission — Borg-Warner T92

Transmission	Borg-Warner T92
Type	shaft-driven gear
Gears	9 forward and 3 reverse
Clutch	152.4mm mechanical dry disc
Tandem transmission option adds a second gearbox inline with the original.
With 7.00-16 rear tires.

Dimensions

Economy Jim Dandy 14HP Tires
Ag front	4.00-8
Ag rear	7.00-16
Lawn/turf front	6.50-8
Lawn/turf rear	8.00-16

Dimensions
Wheelbase	52.5 inches 133 cm
Length	75 inches 190 cm
Width	36.5 inches 92 cm
Height (steering wheel)	47 inches 119 cm
Height (hood)	39 inches 99 cm
Weight	690 lbs 312 kg
Rear axle	1.5 inch diameter 38 mm
Front tread	29 inches 73 cm
Rear tread	28.5 to 33 inches 72 to 83 cm

Attachments

Attachment overview
36" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

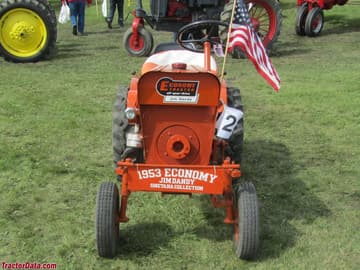

Economy Jim Dandy 14HP

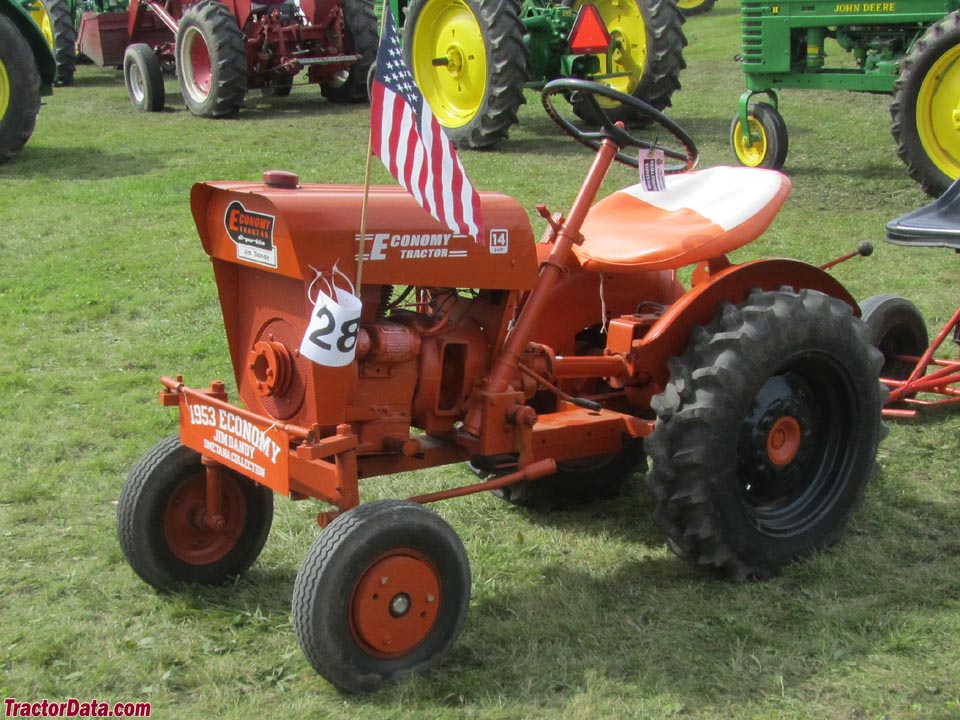

Economy Jim Dandy 14HP

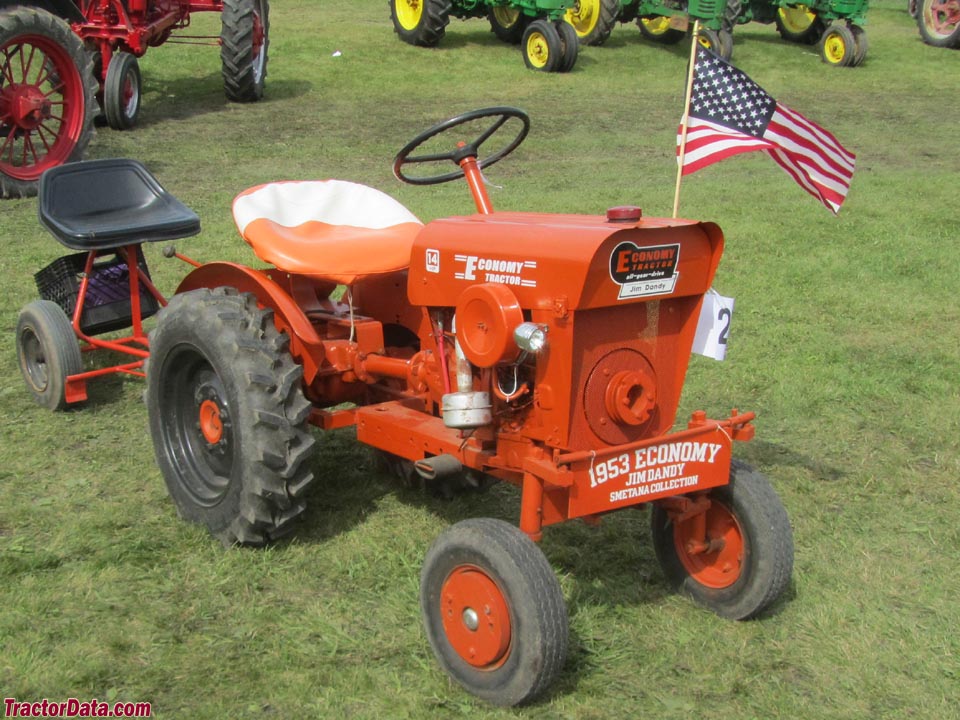

Economy Jim Dandy 14HP

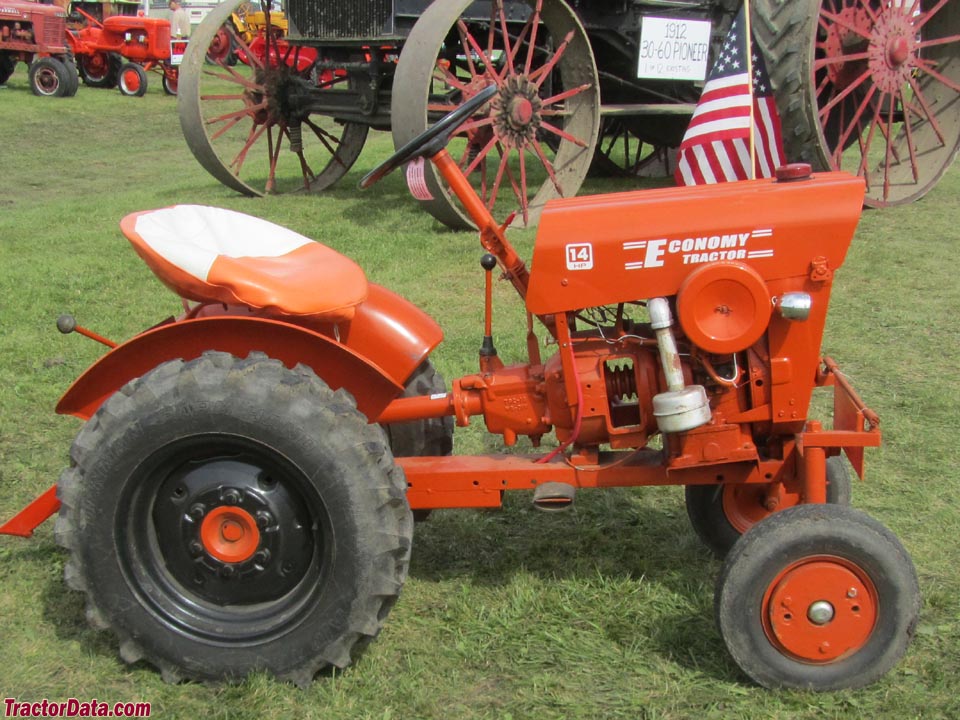

Economy Jim Dandy 14HP

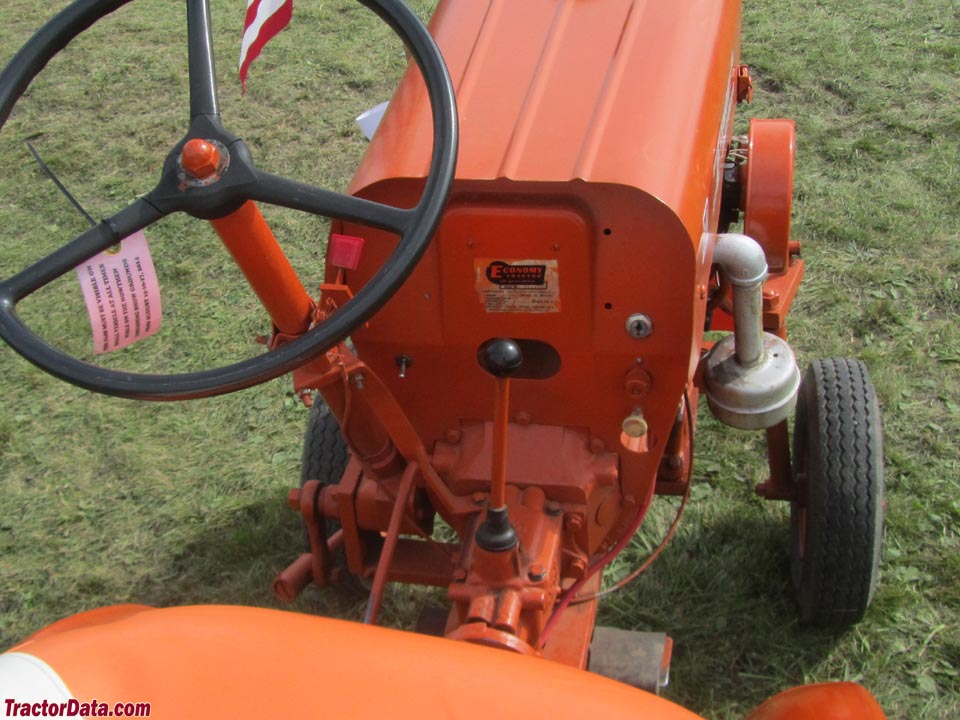

Jim Dandy 14HP operator station and controls.
