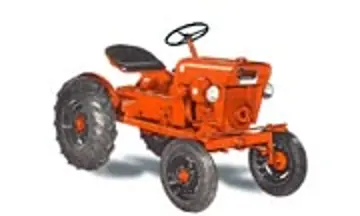

Economy Power King 14HP

The Economy Power King 14HP is a tractor produced by Economy Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Borg-Warner T92. Operating weight: 820 lbs (16) 371 kg.

Overview

	1968 - 1977 Model year 1968-19721973-1977 Garden tractor

Production
Manufacturer	Economy (a part of Engineering Products Company)
Garden tractor
Built in Waukesha, Wisconsin, USA

Economy Power King 14HP Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Mechanical
Two-wheel drive
Final drives	spur bull gears
Steering	manual
Mechanical band brakes
Open operator station.

Hydraulics
Type	open center (optional)
Pressure	1000 psi 69.0 bar
Pump flow	1.8 gpm 6.8 lpm
	7.5 gpm (heavy duty) 28.4 lpm

Tractor hitch
Type	manual-lift rear hitch
	hydraulic-lift optional

Power Take-off (PTO)
Front PTO	continuous
Clutch	none

Dimensions & Tires
Wheelbase	55 inches 139 cm
Weight	820 to 911 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12
Battery AH	45

References
Economy Tractor all-gear-drive published in 1968, by EPCO

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler K321S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power	14 hp 10.4 kW
Rated RPM	3600
Torque	23.8 lb-ft 32.3 Nm
Torque RPM	2200
Starter	electric
Starter volts	12
Oil capacity	2.5 qts 2.4 L

Transmission

Transmission options
3-speed gear
9-speed gear

Transmission — Borg-Warner T92

Transmission	Borg-Warner T92
Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	152.4mm mechanical dry disc
With 8.00-16 rear tires. Speeds for 24-inch tires are about 20% faster.

Transmission — Borg-Warner T92

Transmission	Borg-Warner T92
Type	shaft-driven gear
Gears	9 forward and 3 reverse
Clutch	152.4mm mechanical dry disc
Tandem transmission option adds a second gearbox inline with the original.
With 8.00-16 rear tires. Speeds for 24-inch tires are about 20% faster.

Dimensions

Economy Power King 14HP Tires
Ag front	4.00-12
Ag rear	8.00-16
	8.00-24

Dimensions
Wheelbase	55 inches 139 cm
Length	81 inches (16) 205 cm
	85 inches (24) 215 cm
Width	43.5 inches (16) 110 cm
	41.5 inches (24) 105 cm
Weight	820 lbs (16) 371 kg
	911 lbs (24) 413 kg
Rear axle	1.5 inch diameter 38 mm
Front tread	36.5 to 38.75 inches 92 to 98 cm
Rear tread	35.75 to 39.75 inches 90 to 100 cm (16)
Rear tread	33.5 to 37.5 inches 85 to 95 cm (24)

Economy Power King 14HP Height
Steering wheel	50 inches (16) 127 cm
	53 inches (24) 134 cm
Hood	41 inches (16) 104 cm
	44 inches (24) 111 cm

Attachments

Attachment overview
36" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

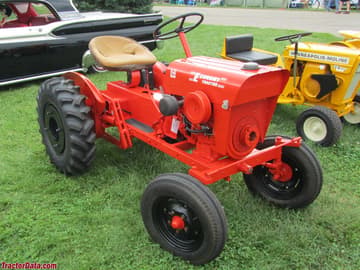

Economy Power King 14HP

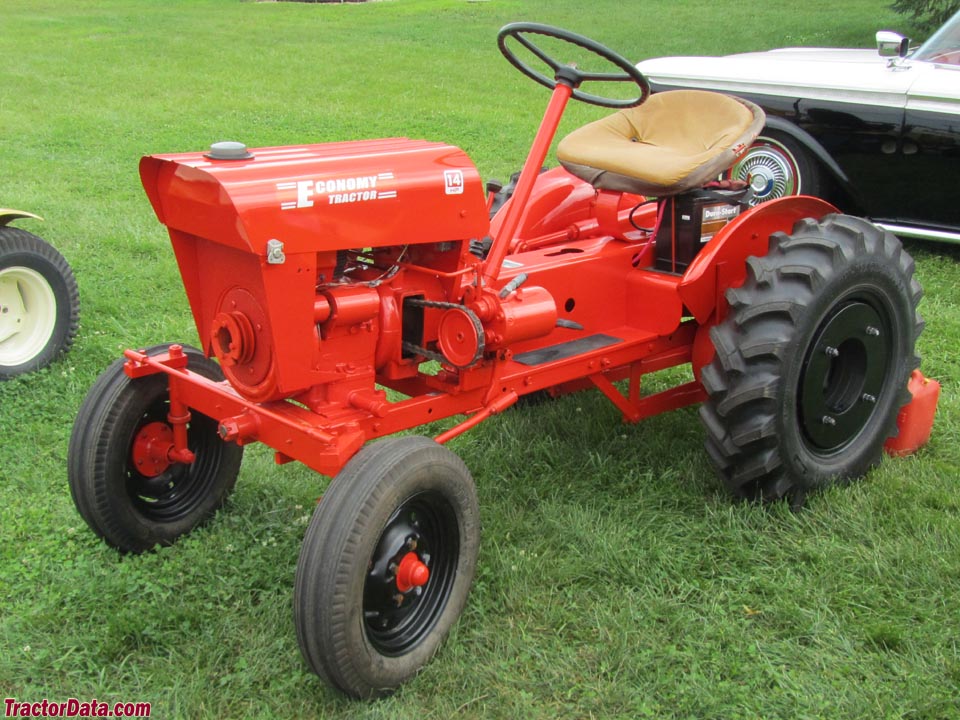

Economy Power King 14HP

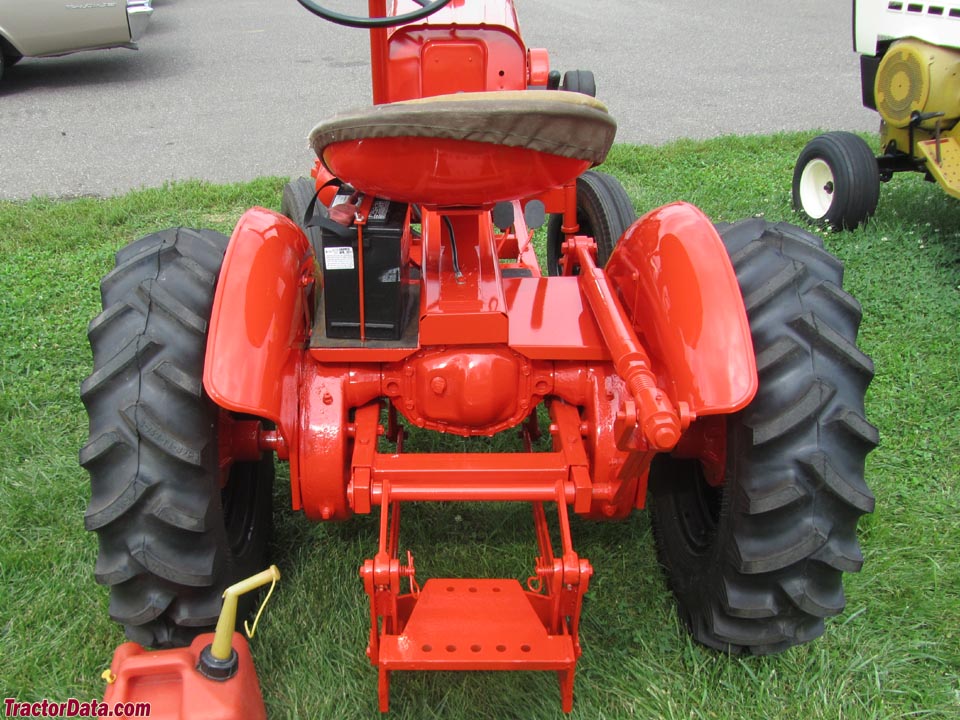

Economy Power King 14HP

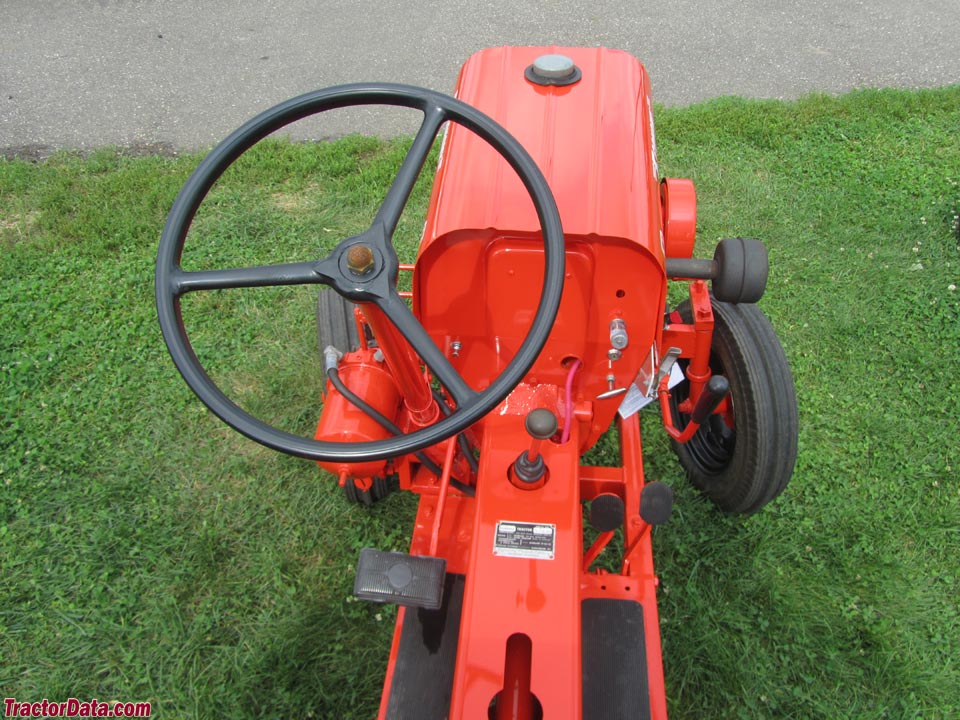

Economy Power King 14HP operator station and controls.
