Farmall 1026

The Farmall 1026 is a tractor produced by Farmall. It is equipped with a 406.9 ci 6.7 L engine. The listed engine power is Diesel (net): 123 hp / 91.7 kW; Diesel (gross): 127 hp / 94.7 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 11100 lbs 5034 kg.

Overview

	1970 - 1971 Row-Crop tractor

Production
Manufacturer	Farmall (a part of International Harvester)
Row-Crop tractor
Built in Rock Island, Illinois, USA
Total built	2,414
Original price was $11,800 in 1971

Variants
IH 1026	standard
Farmall 1026	row-crop
IH 21026	industrial

Farmall 1026 Engine
International Harvester 6.7L 6-cyl diesel
Fuel tank	42 gal 159.0 L
Engine details ...

Farmall 1026 Transmission
hydrostatic
Transmission details ...

Farmall 1026 Power
Engine (gross)	127 hp 94.7 kW
Engine (net)	123 hp 91.7 kW
PTO (claimed)	112 hp 83.5 kW
Drawbar (tested)	80.24 hp 59.8 kW
PTO (tested)	112.45 hp 83.9 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic dry disc brakes
Open operator station.

Hydraulics
Type	open center
Rear valves	1 or 2

Tractor hitch
Rear Type	II
Control	hydraulic draft control

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic disc
Rear PTO Type	1000
	540/1000
Engine RPM	540@2100
	1000@2100

Dimensions & Tires
Wheelbase	105 inches 266 cm
Weight	11100 lbs 5034 kg
Front tire	11L-15
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Charging system	alternator
Batteries	2
Battery volts	6
Battery AH	204

References
Farm Loaders published in 1970, by International Harvester
Spring 1970 Buyer's Guide published by International Harvester
Spring 1971 Buyer's Guide published by International Harvester
Farm Equipment Reference Catalog published in 1970, by International Harvester

Engine

Engine Detail — 406.9 ci / 6.7 L Diesel

Manufacturer	International Harvester DT-407
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	406.9 ci 6.7 L
Bore/Stroke	4.321x4.625 inches 110 x 117 mm
Power (net)	123 hp 91.7 kW
Power (gross)	127 hp 94.7 kW
Air cleaner	dual-stage dry
Compression	16:1
Rated RPM	2400
Idle RPM	900-2400
Starter volts	12
Oil capacity	13 qts 12.3 L
Coolant capacity	24 qts 22.7 L

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	28 qts 26.5 L

Dimensions

Farmall 1026 Tires
Ag front	11L-15
Ag rear	18.4-38

Dimensions
Wheelbase	105 inches 266 cm
Length	166 inches 421 cm
Height (steering wheel)	86 inches 218 cm
Operating weight	11100 lbs 5034 kg
Ballasted weight	14975 lbs 6792 kg
Bar rear axle	3.25 inch diameter 82 mm
Front tread	60 to 84 inches 152 to 213 cm

Tests

Nebraska Tractor Test 1047
Diesel hydro 2WD June 3 - 27, 1970 Link: Nebraska Tractor Test 1047 file
PTO performance
Power at rated engine speed	112.45 hp 83.9 kW
Fuel use	7.9 gal/hour 29.9 l/hour
Power at rated PTO speed	110.71 hp 82.6 kW
Fuel use	7.1 gal/hour 26.9 l/hour
Drawbar performance
Max power	80.24 hp 59.8 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Max pull	9,583 lbs 4346 kg

Photos

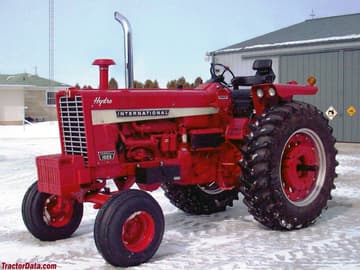

Open-station wide front Farmall 1026.

Tricycle front Farmall 1026 Gold Demonstrator, right side.

Farmall 1026 with cab.

Farmall 1026 with cab.

Wide-front Farmall 1026 Gold Demonstrator, left side.
