CaseIH 5240 Maxxum

The CaseIH 5240 Maxxum is a tractor produced by Caseih. It is equipped with a 359 ci 5.9 L engine. Transmission: 16 forward and 12 reverse. Operating weight: 9787 to 11067 pounds.

Fuel & Capacities

35.7 gal 135.1 L

Transmission

16 forward and 12 reverse

Operating Weight

9787 to 11067 pounds

Overview

	1992 - 1997 Maxxum Series

Production
Manufacturer	CaseIH
Original price was $42,300 in 1997

CaseIH 5240 Engine
CDC 5.9L 6-cyl diesel
Fuel tank	35.7 gal 135.1 L
	45 galOptOptional 170.3 L
Engine details ...

CaseIH 5240 Power
PTO (claimed)	100 hp 74.6 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Two-post fixed ROPS. Cab optional with air-conditioning.

Hydraulics
Type	closed center pressure-flow compensated
Pressure	2600 psi 179.3 bar
Valves	1 to 3
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II
Control	lower-link draft sensing
Rear lift	7700 lbs 3492 kg
Front Hitch	II OptOptional
Front lift (at 24"/610mm)	5200 lbs 2358 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	103.7 inches 263 cm
4WD Wheelbase	101.8 inches 258 cm
Weight	9787 to 11067 pounds
Front tire	10.00-16
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
	95 OptOptional
Batteries	1
	2 OptOptional
Battery volts	12

References

Maxxum Tractors published in 1992, by CaseIH

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	CDC
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.02x4.72 inches 102 x 120 mm
Rated RPM	2200
Idle RPM	850-2355
Starter volts	12

Transmission

Transmission options
16-speed synchronized
16-speed 4-speed power shift

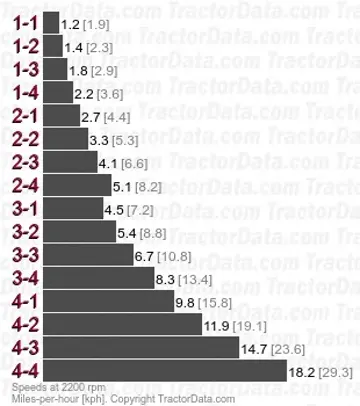

Transmission — 16 forward and 12 reverse synchronized

Type	synchronized
Gears	16 forward and 12 reverse
With 16.9-38 rear tires. Reverse speeds are 22% faster than forward.

Transmission — 16 forward and 12 reverse 4-speed power shift

Type	4-speed power shift
Gears	16 forward and 12 reverse
Four power shift gears in four synchronized ranges and shuttle shifting.

Dimensions

CaseIH 5240 Tires
Ag front	10.00-16
Ag rear	18.4-38

Dimensions
2WD Wheelbase	103.7 inches 263 cm
4WD Wheelbase	101.8 inches 258 cm
2WD Length	170.6 inches 433 cm
4WD Length	174.2 inches 442 cm
2WD ROPS Weight	9787 lbs 4439 kg
4WD ROPS Weight	11067 lbs 5019 kg
@WD Clearance (front axle)	22.1 inches 56 cm
4WD Clearance (front axle)	18.4 inches 46 cm
Clearance (drawbar)	18.8 inches 47 cm
Flange rear axle
Bar rear axle	96 inch length 2438 mm
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 88 inches 152 to 223 cm (flange)
Rear tread	60 to 110 inches 152 to 279 cm (bar)

CaseIH 5240 Height
Steering wheel	80.7 inches 204 cm
Hood	69.8 inches 177 cm
Cab	106.1 inches 269 cm
Exhaust	107.6 inches 273 cm

Photos

CaseIH 5240 Maxxum

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 5240 Maxxum.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
