Farmall 130
The Farmall 130 is a tractor produced by Farmall. It is equipped with a 122.7 ci 2.0 L engine. The rated power output is 22.23 hp 16.6 kW. Transmission: 4 forward and 1 reverse. Operating weight: 2,800 lbs 1270 kg.
Engine Power
22.23 hp
16.6 kW
Fuel & Capacities
11 gal
41.6 L
Transmission
4 forward and 1 reverse
Operating Weight
2,800 lbs
1270 kg
Farmall 130 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

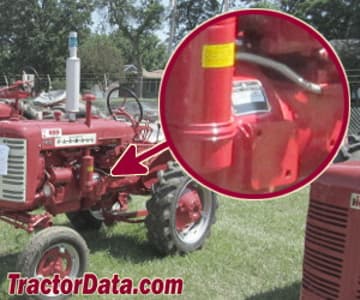

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1956 - 1958
Row-Crop tractor |
|---|---|
1956 - 1958 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Farmall (a part of International Harvester) |
Row-Crop tractor | |
Total built | 9,197 |
Original price | $2000 (1958) |
Variants | |
|---|---|
130 | row-crop |
130 Hi-Clear | high-crop |
130 | similar International Harvester model |
Farmall 130 Engine | |
|---|---|
International Harvester 2.0L 4-cyl gasoline | |
Fuel tank | 11 gal
41.6 L |
Engine details ...  | |
Farmall 130 Transmission | |
|---|---|
4-speed sliding gear | |
Transmission details ...  |
Farmall 130 Power | |
|---|---|
Drawbar (tested) | 19.91 hp
14.8 kW |
Belt (tested) | 22.23 hp
16.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Differential mechanical contracting band brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | IH Fast-Hitch (1-arm) |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71 inches
180 cm |
Weight | 2,800 lbs
1270 kg |
Front tire | 5.00x15 |
Rear tire | 9.00x24 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Farm Loaders published in 1962, by International Harvester | |
Farm Loaders published in 1970, by International Harvester |
Engine
Engine Detail — 122.7 ci / 2.0 L Gasoline
Manufacturer | International Harvester C-123 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled vertical I-head |
Displacement | 122.7 ci
2.0 L |
Bore/Stroke | 3.125x4.00 inches
79 x 102 mm |
Air cleaner | oil bath |
Compression | 6.8:1 |
Rated RPM | 1400 |
Firing order | 1-3-4-2 |
Starter volts | 6 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 15 qts
14.2 L |
Transmission
Transmission — 4 forward and 1 reverse sliding gear
Type | sliding gear |
Gears | 4 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
Farmall 130 Tires | |
|---|---|
Ag front | 5.00x15 |
Ag rear | 9.00x24 |
Dimensions | |
|---|---|
Wheelbase | 71 inches
180 cm |
Length | 107 inches
271 cm |
Width | 56 inches
142 cm |
Height (steering wheel) | 65 inches
165 cm |
Operating weight | 2,800 lbs
1270 kg |
Ballasted weight | 4,650 lbs
2109 kg |
Ground clearance | 21.9 inches
55 cm |
27 inches (high crop)
68 cm | |
Front tread | 44 to 64 inches
111 to 162 cm |
Rear tread | 40 to 68 inches
101 to 172 cm |
Tests
Nebraska Tractor Test 617 | |
|---|---|
Gasoline 4-speed 2WD
April 25 - May 7, 1957
Link: Nebraska Tractor Test 617 file | |
Belt power (max) | 22.23 hp
16.6 kW |
Belt fuel use (max) | 1.8 gal/hour
6.8 l/hour |
Drawbar performance | |
Max power | 19.91 hp
14.8 kW |
Gear 2 used for power test. | |
Max pull | 2,956 lbs
1340 kg |
Gear 1 used for pull test. | |
Photos

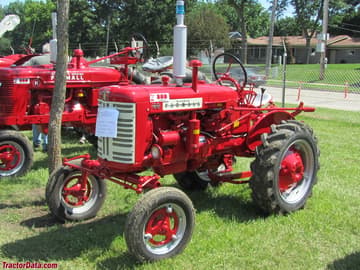

Farmall 130
