Farmall 564
The Farmall 564 is a tractor produced by Farmall. It is equipped with a 206.4 ci 3.4 L engine. The listed engine power is Diesel (listed): 60 hp / 44.7 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: Agriomatic S. Operating weight: 5465 to 6592 pounds.
Engine Power
Diesel (listed): 60 hp / 44.7 kW; Diesel (listed): 4 hp / 3.0 kW
Fuel & Capacities
18.5 gal
70.0 L
Transmission
Agriomatic S
Operating Weight
5465 to 6592 pounds
Overview
 | Utility tractor | Utility tractor |
|---|
Note: the Farmall model 564 is the same as the International Harvester 654. The following data is from the 654 listing. |
|---|
Production | |
|---|---|
Manufacturer | Farmall (a part of International Harvester) |
Utility tractor | |
Built in Neuss, Germany | |
Farmall 564 Engine | |
|---|---|
International Harvester 3.4L 4-cyl diesel | |
Engine details ...  |
Farmall 564 Power | |
|---|---|
Engine | 60 hp
44.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Manual steering | |
Dry disc brakes | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 18.5 gal
70.0 L |
Hydraulic system | 4.4 gal
16.7 L |
Hydraulics | |
|---|---|
Capacity | 4.4 gal
16.7 L |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 4410 lbs
2000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 83.5 inches
212 cm |
Weight | 5465 to 6592 pounds |
Front tire | 6.00-16 |
Rear tire | 12.4/11-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
Charging amps | 11 |
Charging volts | 14 |
Batteries | 2 |
Battery volts | 6 |
Battery AH | 88 |
Engine
Note: the Farmall model 564 is the same as the International Harvester 654. The following data is from the 654 listing. |
|---|
Engine Detail — 206.4 ci / 3.4 L Diesel
Manufacturer | International Harvester D-206 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 206.4 ci
3.4 L |
Bore/Stroke | 3.875x4.38 inches
98 x 111 mm |
Power | 60 hp
44.7 kW |
Rated RPM | 2180 |
Torque | 155.5 lb-ft
210.9 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Starter power | 4 hp
3.0 kW |
Oil capacity | 9.5 qts
9.0 L |
Coolant capacity | 18.5 qts
17.5 L |
Transmission
Note: the Farmall model 564 is the same as the International Harvester 654. The following data is from the 654 listing. |
|---|
Transmission options | |
|---|---|
8-speed partially synchronized | |
12-speed partial power shift |
Transmission — 8 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 8 forward and 4 reverse |
Oil capacity | 44.4 qts
42.0 L |
With 11-36 rear tires. | |
 | |

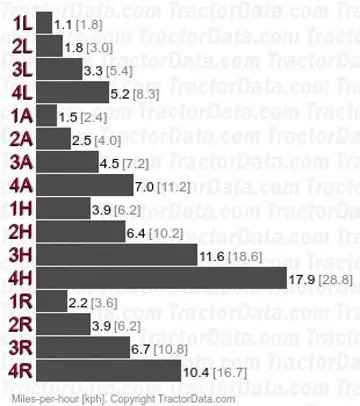

Transmission — Agriomatic S
Transmission | Agriomatic S |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Oil capacity | 37 qts
35.0 L |
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle. | |
With 11-36 rear tires. | |
 | |
Dimensions
Note: the Farmall model 564 is the same as the International Harvester 654. The following data is from the 654 listing. |
|---|
Farmall 564 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 12.4/11-36 |
Ag front | 6.50-16 |
7.50-16 | |
7.50-18 | |
Ag rear | 13.6/12-36 |
13.6/12-38 | |
14.9/13-30 | |
16.9/14-30 | |
16.9-14/34 | |
18.4/15-30 | |
15.5-38 | |
Dimensions | |
|---|---|
Wheelbase | 83.5 inches
212 cm |
Length | 139.8 inches
355 cm |
Width | 70.4 inches
178 cm |
Height | 69.1 inches
175 cm |
2WD Weight | 5465 lbs
2478 kg |
4WD Weight | 6592 lbs
2990 kg |
Ground clearance | 15 inches
38 cm |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Farmall 564.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
