Farmall 140

The Farmall 140 is a tractor produced by Farmall. It is equipped with a 122.7 ci 2.0 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 3,000 lbs 1360 kg.

Fuel & Capacities
11 gal 41.6 L
Transmission
4 forward and 1 reverse
Operating Weight
3,000 lbs 1360 kg

Overview

Farmall 140 tractor photo
1958 - 1973
Production
Manufacturer
Farmall (a part of International Harvester)
Total built
66,290
The Farmall 140 was restyled in late 1963 at tractor serial number 23301. The new style was to match the Farmall 404 and 504 tractors then in production.
Variants
International 140
IH version
Farmall 140
utility
140 Hi-Clear
high-crop
Farmall 140 Engine
International Harvester 2.0L 4-cyl gasoline
Fuel tank
11 gal 41.6 L
Engine details ...
Farmall 140 Transmission
4-speed sliding gear
Transmission details ...
Farmall 140 Power
Drawbar (claimed)
17 hp 12.7 kW
PTO (claimed)
21 hp 15.7 kW
Plows
1
Drawbar (tested)
21.25 hp 15.8 kW
Belt (tested)
23.02 hp 17.2 kW
Performance test details ...
Mechanical
Two-wheel drive
Steering
manual
Differential contracting band brakes
Open operator station.
Tractor hitch
Type
IH Fast Hitch (one-point)
Power Take-off (PTO)
Rear PTO
transmission
Rear PTO Type
540
Dimensions & Tires
Wheelbase
71 inches 180 cm
Weight
3,000 lbs 1360 kg
Front tire
5.00-15
Rear tire
11.2-24
Full dimensions and tires ...
Electrical
Ground
positive (6V)
negative (12V)
Charging system
generator (early)
alternator (late)
Battery volts
6 (early)
12 (late)
References
140 references literature
Farm Loaders published in 1962, by International Harvester
Farm Loaders published in 1965, by International Harvester
Farm Loaders published in 1970, by International Harvester
Spring 1968 Buyer's Guide published by International Harvester
140 Tractor published in 1958, by International Harvester

Engine

Engine Detail — 122.7 ci / 2.0 L Gasoline

Manufacturer
International Harvester C-123
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled vertical I-head
Displacement
122.7 ci 2.0 L
Bore/Stroke
3.125x4.00 inches 79 x 102 mm
Air cleaner
oil bath
Compression
6.94:1
Rated RPM
1400
Firing order
1-3-4-2
Starter volts
6 (early)
12 (late)
Oil capacity
5 qts 4.7 L
Coolant capacity
15.2 qts 14.4 L

Transmission

Transmission — 4 forward and 1 reverse sliding gear

Type
sliding gear
Gears
4 forward and 1 reverse
140 sliding gear speeds

Dimensions

Farmall 140 Tires
Ag front
5.00-15
Ag rear
11.2-24
Dimensions
Wheelbase
71 inches 180 cm
Length
107 inches 271 cm
Height
83 inches 210 cm
Height (steering wheel)
65 inches 165 cm
Operating weight
3,000 lbs 1360 kg
Ballasted weight
4,825 lbs 2188 kg

Tests

Nebraska Tractor Test 666
Gasoline 4-speed 2WD September 3 - 18, 1958 Link: Nebraska Tractor Test 666 file
Belt power (max)
23.02 hp 17.2 kW
Belt fuel use (max)
2.0 gal/hour 7.6 l/hour
Drawbar performance
Max power
21.25 hp 15.8 kW
Fuel use
2.0 gal/hour 7.6 l/hour
Gear 2 used for power test.
Max pull
3,611 lbs 1637 kg
Gear 1 used for pull test.

Photos

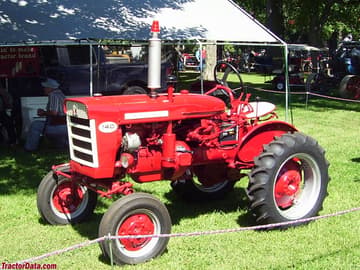

Early (pre-1963) Farmall 140 with white horizontal grill.

Early (pre-1963) Farmall 140 with white horizontal grill.

Late Farmall 140 with horizontal grill.

Late Farmall 140 with horizontal grill.
