farmall 1466
 | Row-Crop tractor | Row-Crop tractor |
|---|---|---|
Row-Crop tractor | ||
Row-Crop tractor |
|---|
Note: the Farmall model 1466 is the same as the International Harvester 1466. The following data is from the 1466 listing. |
|---|
Transmission options | |
|---|---|
8-speed gear | |
16-speed two-speed power shift |
Transmission | |
|---|---|
Type | gear |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
Oil capacity | 88 qts
83.3 L |
Four gears each in high, low, and reverse ranges. | |

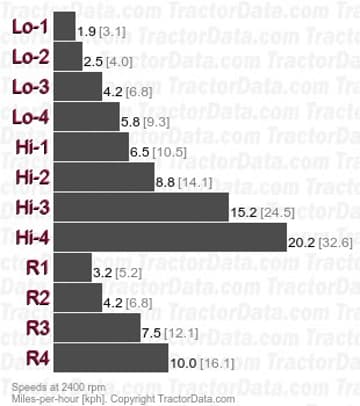

Speeds | |
|---|---|
With 18.4-38 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | Torque Amplifier |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Oil capacity | 88 qts
83.3 L |
The Torque Amplifier (TA) provides a power shift in all gears and ranges from direct drive (DD) to a lower TA speed. Without clutching the TA lever is pulled to the rear to engage. The transmission is returned to direct drive by pushing the TA lever forward. | |

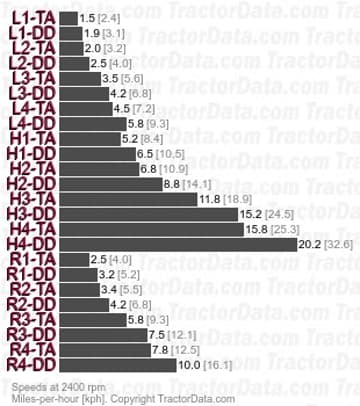

Speeds | |
|---|---|
With 18.4-38 rear tires. | |
 |
