Farmall 200

The Farmall 200 is a tractor produced by Farmall. It is equipped with a 122.7 ci 2.0 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 3,541 lbs 1606 kg.

Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
3,541 lbs 1606 kg

Overview

Farmall 200 tractor photo
1954 - 1956 Row-Crop tractor
Production
Manufacturer
Farmall (a part of International Harvester)
Row-Crop tractor
Original price was $1,970 in 1956
Farmall 200 Engine
International Harvester 2.0L 4-cyl gasoline
Engine details ...
Farmall 200 Transmission
4-speed sliding gear
Transmission details ...
Farmall 200 Power
Drawbar (tested)
20.92 hp 15.6 kW
Belt (tested)
24.11 hp 18.0 kW
Performance test details ...
Mechanical
Two-wheel drive
Steering
manual
Differential mechanical dry disc brakes
Open operator station.
Power Take-off (PTO)
Rear PTO Type
540
Dimensions & Tires
Wheelbase
82.25 inches 208 cm
Weight
3,541 lbs 1606 kg
Front tire
5.00-15
Rear tire
10-36
Full dimensions and tires ...
References
200 references literature
Hydra-Creeper Hydraulic Drive published by International Harvester
Operator's Manual Hydra-Creeper Attachment

Engine

Engine Detail — 122.7 ci / 2.0 L Gasoline

Manufacturer
International Harvester C123
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled vertical I-head
Displacement
122.7 ci 2.0 L
Bore/Stroke
3.125x4.00 inches 79 x 102 mm
Air cleaner
oil bath
Compression
6.5:1
Rated RPM
1400
Firing order
1-3-4-2
Starter volts
6
Oil capacity
5 qts 4.7 L

Transmission

Transmission — 4 forward and 1 reverse sliding gear

Type
sliding gear
Gears
4 forward and 1 reverse
Clutch
dry disc
200 sliding gear speeds

Dimensions

Farmall 200 Tires
Ag front
5.00-15
Ag rear
10-36
Dimensions
Wheelbase
82.25 inches 208 cm
Weight
3,541 lbs 1606 kg
Front tread
6.625 to 12.375 inches 16 to 31 cm
Rear tread
48 to 80 inches 121 to 203 cm

Tests

Nebraska Tractor Test 536
Gasoline 4-speed 2WD April 18 - 29, 1955 Link: Nebraska Tractor Test 536 file
Belt power (max)
24.11 hp 18.0 kW
Belt fuel use (max)
2.4 gal/hour 9.1 l/hour
Drawbar performance
Max power
20.92 hp 15.6 kW
Gear 2 used for power test.
Max pull
3,166 lbs 1436 kg
Gear 1 used for pull test.

Photos

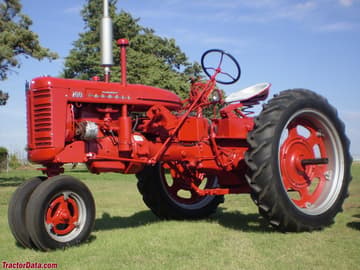

Tricycle-front Farmall 200

Tricycle-front Farmall 200

Wide-front Farmall 200

Wide-front Farmall 200

Farmall 200 operator station and controls.

Farmall 200 operator station and controls.
