farmall 400
 | 1954 - 1956
Row-Crop tractor | 1954 - 1956 | Row-Crop tractor |
|---|---|---|---|
1954 - 1956 | |||
Row-Crop tractor | |||
1954 - 1956 | |
|---|---|
Row-Crop tractor |
Engine options | |
|---|---|
International Harvester 4.3L 4-cyl gasoline | |
International Harvester 4.3L 4-cyl diesel | |
International Harvester 4.3L 4-cyl LP gas |
Engine Detail | |
|---|---|
International Harvester C264 | |
gasoline | |
4-cylinder | |
liquid-cooled vertical I-head | |
Displacement | 264 ci
4.3 L |
Bore/Stroke | 4.00x5.25 inches
102 x 133 mm |
Fuel system | 1.25-inch updraft carburetor |
Air cleaner | oil bath |
Compression | 6.3:1 |
Rated RPM | 1450 |
Idle RPM | 400-1600 |
Firing order | 1-3-4-2 |
Starter volts | 6 |
Coolant capacity | 26 qts
24.6 L |
Sparkplug gap | 0.023 inches
0.584 mm |
Intake valve clearance | 0.017 inches (hot)
0.432 mm |
Exhaust valve clearance | 0.017 inches (hot)
0.432 mm |

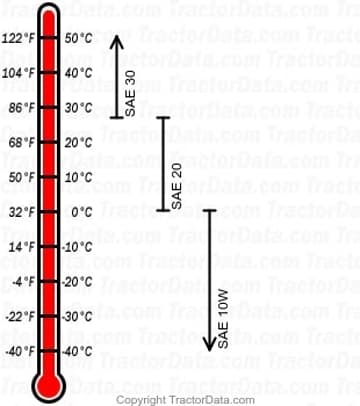

Engine Oil | |
|---|---|
 | |
Oil capacity | 8 qts
7.6 L |
Oil change | 150 h |
Engine Detail | |
|---|---|
International Harvester | |
diesel | |
4-cylinder | |
liquid-cooled vertical I-head | |
Displacement | 264 ci
4.3 L |
Bore/Stroke | 4.00x5.25 inches
102 x 133 mm |
Air cleaner | oil bath |
Compression | 16.5:1 |
Rated RPM | 1450 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Coolant capacity | 29 qts
27.4 L |

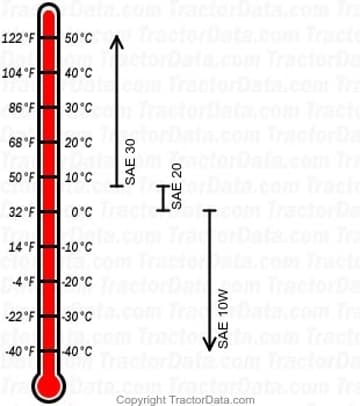

Engine Oil | |
|---|---|
 | |
Oil capacity | 9 qts
8.5 L |
Engine Detail | |
|---|---|
International Harvester | |
LP gas | |
4-cylinder | |
liquid-cooled vertical I-head | |
Displacement | 264 ci
4.3 L |
Bore/Stroke | 4.00x5.25 inches
102 x 133 mm |
Compression | 8.33:1 |
Rated RPM | 1450 |
Firing order | 1-3-4-2 |
Coolant capacity | 26 qts
24.6 L |
