Farmall 460
The Farmall 460 is a tractor produced by Farmall. It is equipped with a 221 ci 3.6 L engine. Transmission: Torque Amplifier. Operating weight: 5835 to 6055 pounds.
Fuel & Capacities
LP gas
Transmission
Torque Amplifier
Operating Weight
5835 to 6055 pounds
Overview
 | 1958 - 1963
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Farmall (a part of International Harvester) |
Row-Crop tractor | |
Built in Rock Island, Illinois, USA | |
Original price was $4,100 in 1963 | |
The Farmall 460 experienced rear-end problems associated with too much engine power for the final drive. International offered an entirely new rear end in mid 1959 to replace the original. | |
Variants | |
|---|---|
IH 460 | utility |
Hi-Clear | high-crop |
Farmall 460 Power | |
|---|---|
Drawbar (claimed) | 45.3 hp
33.8 kW |
PTO (claimed) | 49.47 hp
36.9 kW |
Plows | 4 |
Drawbar (tested) | 46.11 hp
34.4 kW |
Belt (tested) | 50.10 hp
37.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power |
Differential mechanical disc brakes | |
Open operator station. | |
Capacity | |
|---|---|
Hydraulic system | 10 gal
37.9 L |
Hydraulics | |
|---|---|
Capacity | 10 gal
37.9 L |
Valves | 2 |
Pump flow | 12 gpm
45.4 lpm |
Tractor hitch | |
|---|---|
Type | IH Fast Hitch |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 95 inches
241 cm |
100 inches (Hi-Clear)
254 cm | |
Weight | 5835 to 6055 pounds |
Front tire | 5.50-16 |
Rear tire | 12.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
Charging amps | 20 |
Batteries | 2 (diesel) |
1 (gas/LP) | |
Battery volts | 6 (diesel) |
12 (gas/LP) | |
References | |
|---|---|
 | |
Farm Loaders published in 1962, by International Harvester | |
Farm Loaders published in 1965, by International Harvester | |
Farm Loaders published in 1970, by International Harvester | |
Operator's Manual Farmall 460 Diesel, 560 Diesel and International 560 Diesel Tractors (1014077R1) published in 1959 | |
Operator's Manual Farmall 460, 560 and International 560 (1 014 051 R1) published in 1958 | |
Direct-Start Diesel Tractors published in 1958, by International Harvester |
Engine
Engine options | |
|---|---|
International Harvester 3.6L 6-cyl gasoline | |
International Harvester 3.9L 6-cyl diesel | |
International Harvester 3.6L 6-cyl LP gas |
Engine Detail — 221 ci / 3.6 L Gasoline
Manufacturer | International Harvester C-221 |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 221 ci
3.6 L |
Bore/Stroke | 3.5625x3.6875 inches
90 x 94 mm |
Air cleaner | oil bath |
Compression | 7.2:1 |
Rated RPM | 1800 |
Starter volts | 12 |
Engine Detail — 236 ci / 3.9 L Diesel
Manufacturer | International Harvester D-236 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 236 ci
3.9 L |
Bore/Stroke | 3.6875x3.6875 inches
94 x 94 mm |
Air cleaner | oil bath |
Rated RPM | 1800 |
Starter volts | 12 |
Oil capacity | 9 qts
8.5 L |
Engine Detail — 221 ci / 3.6 L LP Gas
Manufacturer | International Harvester |
Fuel Type | LP gas |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 221 ci
3.6 L |
Bore/Stroke | 3.5625x3.6875 inches
90 x 94 mm |
Air cleaner | oil bath |
Compression | 8.75:1 |
Rated RPM | 1800 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
5-speed | |
10-speed |
Transmission — sliding gear
Transmission | sliding gear |
Gears | 5 forward and 1 reverse |
Oil capacity | 40 qts
37.9 L |
Oil type | IH Hy-Tran |
Tractor must be stopped and clutch used to shift gears. An option "heavy tillage gear" was available to replace the third speed in the transmission. Serial number suffix "CC" indicates this option. | |
with 12.4-38 rear tires. | |
 | |
IH Hy-Tran |
|---|

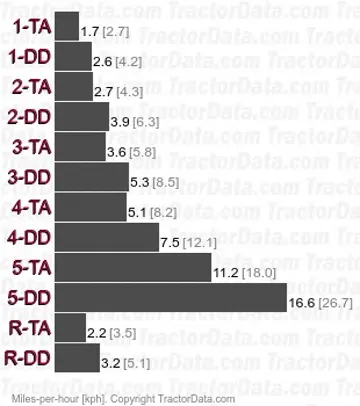

Transmission — Torque Amplifier
Transmission | Torque Amplifier |
Gears | 10 forward and 2 reverse |
Oil capacity | 40 qts
37.9 L |
Oil type | IH Hy-Tran |
The Torque Amplifier (TA) allows a clutchless shift-on-the-move underspeed for any gear. With the TA lever forward, the TA is disengaged and the transmission is in direct drive (DD) mode. To engage the TA, the lever should be pulled quickly and smoothly to the rear. The TA on the 460 will free-wheel, so it should be disengaged when going downhill or towing the tractor to start it. | |
With 12.4-38 rear tires. | |
 | |
IH Hy-Tran |
|---|
Dimensions
Farmall 460 Tires | |
|---|---|
Ag front | 5.50-16 |
6.00-20 (Hi-Clear) | |
Ag rear | 12.4-38 |
11-38 (Hi-Clear) | |
Dimensions | |
|---|---|
Wheelbase | 95 inches
241 cm |
100 inches (Hi-Clear)
254 cm | |
Length | 140 inches
355 cm |
153 inches (Hi-Clear)
388 cm | |
Width | 83.5 inches (min)
212 cm |
86 inches (Hi-Clear min)
218 cm | |
105 inches (max)
266 cm | |
Height (steering wheel) | 78 inches (row-crop)
198 cm |
90 inches (Hi-Clear)
228 cm | |
Ground clearance | 19.5 inches (frame)
49 cm |
22 inches (front-axle)
55 cm | |
25.5 inches (rear axle)
64 cm | |
30.5 inches (Hi-Clear frame)
77 cm | |
Farmall 460 Weight | |
|---|---|
Operating | 5,835 lbs (gas)
2646 kg |
6,055 lbs (diesel)
2746 kg | |
Ballasted | 8,931 lbs
4051 kg |
Tests
Tractor Tests | |
|---|---|
NTTL 670: gasoline Torque Amplifier 2WD | |
NTTL 672: diesel Torque Amplifier 2WD | |
NTTL 676: LP gas Torque Amplifier 2WD |
Nebraska Tractor Test 670 | |
|---|---|
Gasoline Torque Amplifier 2WD
September 22 - October 3, 1958
Link: Nebraska Tractor Test 670 file | |
Belt power (max) | 49.47 hp
36.9 kW |
Belt fuel use (max) | 4.2 gal/hour
15.9 l/hour |
Drawbar performance | |
Max power | 35.95 hp
26.8 kW |
Fuel use | 3.6 gal/hour
13.6 l/hour |
Nebraska Tractor Test 672 | |
|---|---|
Diesel Torque Amplifier 2WD
September 30 - October 11, 1958
Link: Nebraska Tractor Test 672 file | |
Belt power (max) | 50.10 hp
37.4 kW |
Belt fuel use (max) | 3.6 gal/hour
13.6 l/hour |
Drawbar performance | |
Max power | 36.19 hp
27.0 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Gear 3-DD used for power test. | |
Max pull | 6,846 lbs
3105 kg |
Gear 1-TA used for pull test. | |
Nebraska Tractor Test 676 | |
|---|---|
LP gas Torque Amplifier 2WD
October 20 - 25, 1958
Link: Nebraska Tractor Test 676 file | |
Belt power (max) | 49.85 hp
37.2 kW |
Belt fuel use (max) | 5.6 gal/hour
21.2 l/hour |
Drawbar performance | |
Max power | 46.11 hp
34.4 kW |
Gear 3-DD used for power test. | |
Max pull | 6,903 lbs
3131 kg |
Gear 1-TA used for pull test. | |
Attachments
Attachment overview | |
|---|---|
International Harvester 2001 loader | |
International Harvester 2000 loader |
Photos

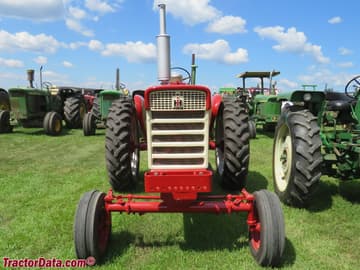

Wide-front Farmall 460
Wide-front Farmall 460
Wide-front Farmall 460
Wide-front Farmall 460
Wide-front Farmall 460
Tricycle-front Farmall 460
Farmall 460 operator station and controls.
