Farmall A-514
The Farmall A-514 is a tractor produced by Farmall. It is equipped with a 264 ci 4.3 L engine. The listed engine power is Diesel (listed): 50.5 hp / 37.7 kW. Transmission: 5 forward and 1 reverse.
Engine Power
Diesel (listed): 50.5 hp / 37.7 kW
Fuel & Capacities
Diesel
Transmission
5 forward and 1 reverse
Overview
 | 1962 - 1964
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Farmall (a part of International Harvester) |
Row-Crop tractor | |
Built in Geelong, Australia | |
Original price was AUP 1,440 in 1964 | |
The McCormick International FARMALL A-514 was mechanically similar to the British-built B-450 and similar in appearance to the US-built 560. A row-crop tractor, it was available with single front wheel, tricycle front, or adjustable wide front. The A-514 was supplanted by the A-554. | |
Farmall A-514 Engine | |
|---|---|
International Harvester 4.3L 4-cyl diesel | |
Engine details ...  |
Farmall A-514 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Farmall A-514 Power | |
|---|---|
Engine | 50.5 hp
37.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | II |
Dimensions & Tires | |
|---|---|
Front tire | 6.00-16 |
Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
International Harvester Australia: Geelong Works by Sarah Tomac* | |
International Harvester Tractors & Equipment in Australia & New Zealand by Graeme Quick | |
Trucks, Tractors and Farm Equipment in Australia published in 1964, by International Harvester | |
*Publication contains known errors. |
Engine
Engine Detail — 264 ci / 4.3 L Diesel
Manufacturer | International Harvester AD-264 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 264 ci
4.3 L |
Bore/Stroke | 4.00x5.25 inches
102 x 133 mm |
Power | 50.5 hp
37.7 kW |
Rated RPM | 1450 |
Starter type | electric |
Transmission
Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
Dimensions
Farmall A-514 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 13.6-38 |
Dimensions |
|---|
Photos

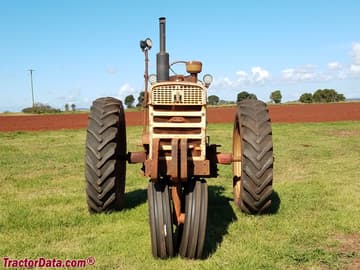

Farmall A-514 with tricycle front end.
Farmall A-514 with tricycle front end.
Farmall A-514 with tricycle front end.
Farmall A-514 with tricycle front end.
Farmall A-514 with wide front end.
Three Farmall A-514 tractors.
Recommended Implements & Sizing Guide
Engineering recommendations for Farmall A-514 based on its 50.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Farmall A-514.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Farmall A-514 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Farmall A-514.
Converted Equivalents:
Horsepower (HP)50.5 hp
Kilowatts (kW)37.7 kW
Metric Horsepower (PS / CV)51.2 PS
