farmall 656
 | 1965 - 1973
Row-Crop tractor | 1965 - 1973 | Row-Crop tractor |
|---|---|---|---|
1965 - 1973 | |||
Row-Crop tractor | |||
1965 - 1973 | |
|---|---|
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 909: gasoline Torque Amplifier 2WD | |
NTTL 912: diesel Torque Amplifier 2WD | |
NTTL 967: diesel hydrostatic 2WD | |
NTTL 968: gasoline hydrostatic 2WD |

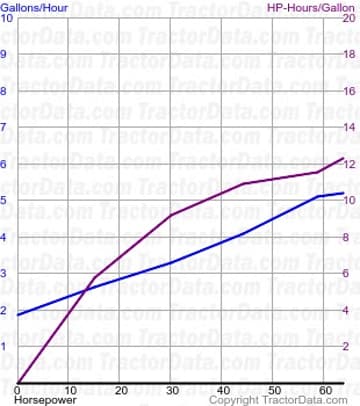

Nebraska Tractor Test 909 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 909 | |
|---|---|
Gasoline Torque Amplifier 2WD
September 9 - 17, 1965
Link: Nebraska Tractor Test 909 file | |
PTO performance | |
Power at rated engine speed | 63.85 hp
47.6 kW |
Fuel use | 5.2 gal/hour
19.7 l/hour |
Drawbar performance | |
Max power | 53.23 hp
39.7 kW |
Fuel use | 5.2 gal/hour
19.7 l/hour |
Gear 3-Direct used for power test. | |
Max pull | 7,486 lbs
3395 kg |
Gear 2-TA used for pull test. | |

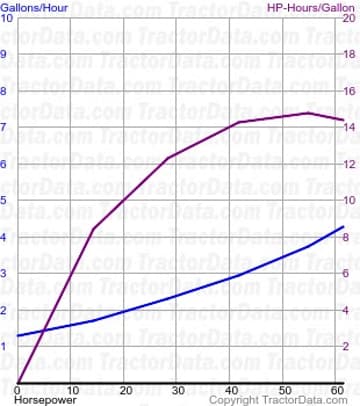

Nebraska Tractor Test 912 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 912 | |
|---|---|
Diesel Torque Amplifier 2WD
September 16 - 23, 1965
Link: Nebraska Tractor Test 912 file | |
PTO performance | |
Power at rated engine speed | 61.52 hp
45.9 kW |
Fuel use | 4.3 gal/hour
16.3 l/hour |
Drawbar performance | |
Max power | 52.98 hp
39.5 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Gear 3-Direct used for power test. | |
Max pull | 7,500 lbs
3402 kg |
Gear 2-TA used for pull test. | |

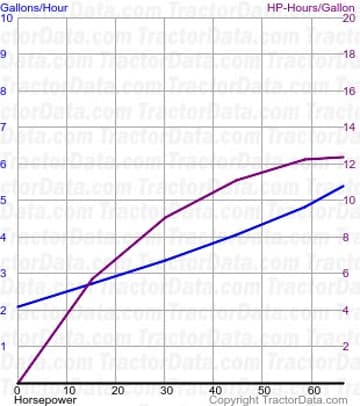

Nebraska Tractor Test 967 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 967 | |
|---|---|
Diesel hydrostatic 2WD
October 31 - November 29, 1967
Link: Nebraska Tractor Test 967 file | |
PTO performance | |
Power at rated engine speed | 66.06 hp
49.3 kW |
Fuel use | 5.4 gal/hour
20.4 l/hour |
Power at rated PTO speed | 62.18 hp
46.4 kW |
Fuel use | 5.0 gal/hour
18.9 l/hour |
Drawbar performance | |
Max power | 50.50 hp
37.7 kW |
Fuel use | 5.4 gal/hour
20.4 l/hour |
Gear 4 mph used for power test. | |
Max pull | 7,558 lbs
3428 kg |
Gear 2.5 mph used for pull test. | |

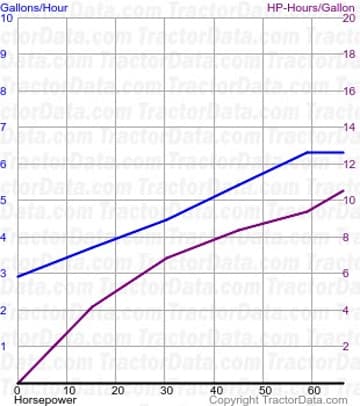

Nebraska Tractor Test 968 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 968 | |
|---|---|
Gasoline hydrostatic 2WD
October 31 - November 29, 1967
Link: Nebraska Tractor Test 968 file | |
PTO performance | |
Power at rated engine speed | 65.8 hp
49.1 kW |
Fuel use | 6.3 gal/hour
23.8 l/hour |
Power at rated PTO speed | 60.81 hp
45.3 kW |
Fuel use | 5.6 gal/hour
21.2 l/hour |
Drawbar performance | |
Max power | 50.09 hp
37.4 kW |
Fuel use | 6.4 gal/hour
24.2 l/hour |
Gear 4 mph used for power test. | |
Max pull | 7,587 lbs
3441 kg |
Gear 2.3 mph used for pull test. | |
