farmall 756

OverviewEngineTransmissionDimensionsTestsAttachmentsPhotos
Farmall 756 tractor photo
1967 - 1971 56 SeriesRow-Crop tractor
1967 - 1971
56 Series
Row-Crop tractor
1967 - 1971
56 Series
Row-Crop tractor
1967 - 1971
56 Series
Row-Crop tractor
Tractor Tests
NTTL 955: 310 diesel Torque Amplifier 2WD
NTTL 956: 291 LP gas Torque Amplifier 2WD
NTTL 957: 291 gas Torque Amplifier 2WD
Nebraska Tractor Test 955

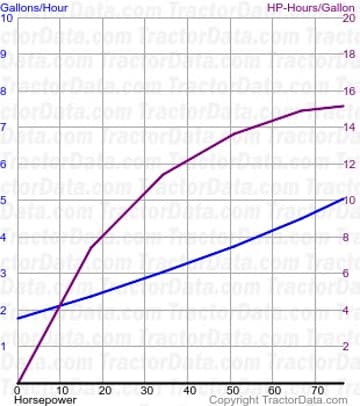

756 fuel use from test 955
756 fuel use from test 955
756 fuel use from test 955
756 fuel use from test 955
Nebraska Tractor Test 955
310 diesel Torque Amplifier 2WD November 14 - 28, 1966 Link: Nebraska Tractor Test 955 file
PTO performance
Power at rated engine speed
76.09 hp 56.7 kW
Fuel use
5.0 gal/hour 18.9 l/hour
Power at rated PTO speed
71.84 hp 53.6 kW
Fuel use
4.7 gal/hour 17.8 l/hour
Drawbar performance
Max power
67.46 hp 50.3 kW
Fuel use
5.0 gal/hour 18.9 l/hour
Gear 1-High-Direct used for power test.
Max pull
8,416 lbs 3817 kg
Gear 3-Low-TA used for pull test.
Nebraska Tractor Test 956

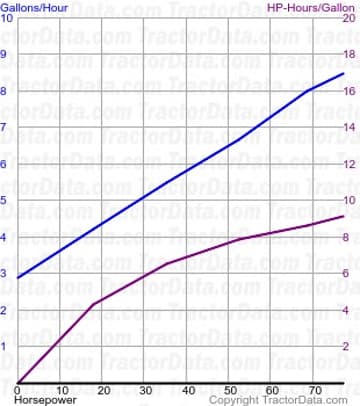

756 fuel use from test 956
756 fuel use from test 956
756 fuel use from test 956
756 fuel use from test 956
Nebraska Tractor Test 956
291 LP gas Torque Amplifier 2WD November 14 - 28, 1966 Link: Nebraska Tractor Test 956 file
PTO performance
Power at rated engine speed
76.3 hp 56.9 kW
Fuel use
8.4 gal/hour 31.8 l/hour
Power at rated PTO speed
70.98 hp 52.9 kW
Fuel use
7.6 gal/hour 28.8 l/hour
Drawbar performance
Max power
66.53 hp 49.6 kW
Fuel use
8.3 gal/hour 31.4 l/hour
Gear 1-High-Direct used for power test.
Max pull
8,387 lbs 3804 kg
Gear 3-Lo-TA used for pull test.
Nebraska Tractor Test 957

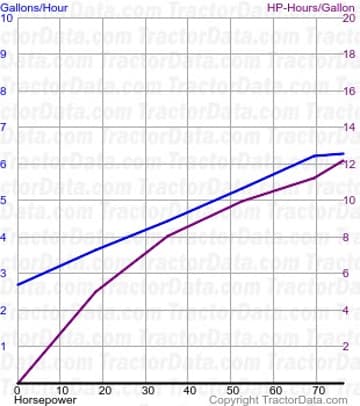

756 fuel use from test 957
756 fuel use from test 957
756 fuel use from test 957
756 fuel use from test 957
Nebraska Tractor Test 957
291 gas Torque Amplifier 2WD November 16 - 28, 1966 Link: Nebraska Tractor Test 957 file
PTO performance
Power at rated engine speed
76.56 hp 57.1 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Power at rated PTO speed
71.8 hp 53.5 kW
Fuel use
5.8 gal/hour 22.0 l/hour
Drawbar performance
Max power
65.67 hp 49.0 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Gear 1-High-DD used for power test.
Max pull
8,387 lbs 3804 kg
Gear 3-Low-TA used for pull test.
