farmall 966
 | 1971 - 1976
66 SeriesRow-Crop tractor | 1971 - 1976 | 66 Series | Row-Crop tractor |
|---|---|---|---|---|
1971 - 1976 | ||||
66 Series | ||||
Row-Crop tractor | ||||
1971 - 1976 | |
|---|---|
66 Series | |
Row-Crop tractor |
Series map: 766966Hydro 10088.6hp*91.0hp115.7hp**Estimated engine power for comparison only.
Note: the Farmall model 966 is the same as the International Harvester 966. The following data is from the 966 listing. |
|---|
Tractor Tests | |
|---|---|
NTTL 1082: 2400rpm diesel gear/TA 2WD | |
NTTL 1095: diesel hydrostatic 2WD | |
NTTL 1123: 2600rpm diesel gear/TA 2WD |

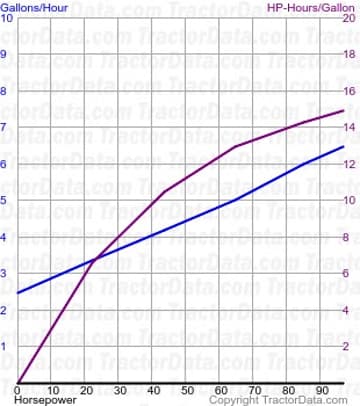

Nebraska Tractor Test 1082 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1082 | |
|---|---|
2400rpm diesel gear/TA 2WD
October 5 - 19, 1971
Link: Nebraska Tractor Test 1082 file | |
PTO performance | |
Power at rated engine speed | 96.04 hp
71.6 kW |
Fuel use | 6.5 gal/hour
24.6 l/hour |
Power at rated PTO speed | 93.5 hp
69.7 kW |
Fuel use | 5.9 gal/hour
22.3 l/hour |
Drawbar performance | |
Max power | 80.4 hp
60.0 kW |
Fuel use | 6.4 gal/hour
24.2 l/hour |
Gear 1-Hi-TA used for power test. | |
Max pull | 10,041 lbs
4554 kg |
Gear 3-Lo-TA used for pull test. | |

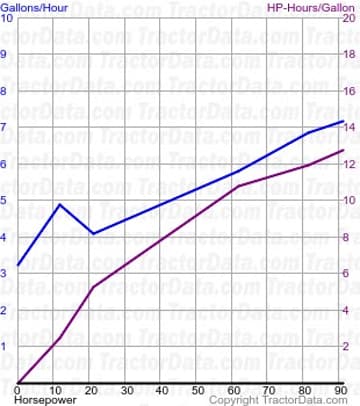

Nebraska Tractor Test 1095 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1095 | |
|---|---|
Diesel hydrostatic 2WD
April 28 - May 12, 1972
Link: Nebraska Tractor Test 1095 file | |
PTO performance | |
Power at rated engine speed | 91.38 hp
68.1 kW |
Fuel use | 7.2 gal/hour
27.3 l/hour |
Power at rated PTO speed | 88.29 hp
65.8 kW |
Fuel use | 6.4 gal/hour
24.2 l/hour |
Drawbar performance | |
Max power | 68.08 hp
50.8 kW |
Fuel use | 7.1 gal/hour
26.9 l/hour |
Gear 5.4 MPH used for power test. | |
Max pull | 8,909 lbs
4041 kg |
Gear 2.77 MPH used for pull test. | |

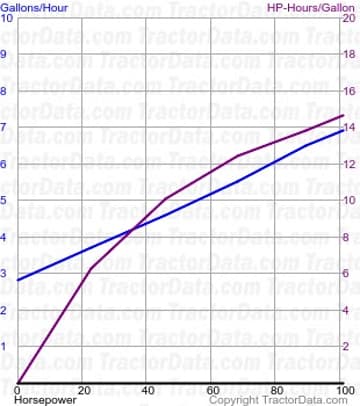

Nebraska Tractor Test 1123 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1123 | |
|---|---|
2600rpm diesel gear/TA 2WD
April 20 - May 17, 1973
Link: Nebraska Tractor Test 1123 file | |
PTO performance | |
Power at rated engine speed | 100.80 hp
75.2 kW |
Fuel use | 6.9 gal/hour
26.1 l/hour |
Power at rated PTO speed | 101.52 hp
75.7 kW |
Fuel use | 6.5 gal/hour
24.6 l/hour |
Drawbar performance | |
Max power | 85.21 hp
63.5 kW |
Fuel use | 6.9 gal/hour
26.1 l/hour |
Gear 1-Hi-TA used for power test. | |
Max pull | 10,036 lbs
4552 kg |
Gear 3-Lo-TA used for pull test. | |
