farmall a
 | 1939 - 1947
Row-Crop tractor | 1939 - 1947 | Row-Crop tractor |
|---|---|---|---|
1939 - 1947 | |||
Row-Crop tractor | |||
1939 - 1947 | |
|---|---|
Row-Crop tractor |
Engine options | |
|---|---|
International Harvester 1.9L 4-cyl gasoline | |
International Harvester 1.9L 4-cyl kerosene |
Engine Detail | |
|---|---|
International Harvester C113 | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Displacement | 113.1 ci
1.9 L |
Bore/Stroke | 3.00x4.00 inches
76 x 102 mm |
Compression | 6.0:1 |
Rated RPM | 1400 |
Firing order | 1-3-4-2 |
Starter | manual |
| electric OptOptional |
Starter volts | 6 |
Coolant capacity | 13 qts
12.3 L |

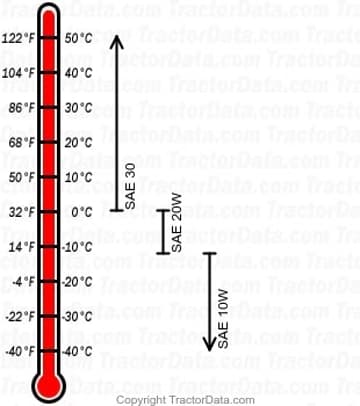

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Oil change | 120 h |
Engine Detail | |
|---|---|
International Harvester | |
kerosene | |
4-cylinder | |
liquid-cooled | |
Displacement | 113.1 ci
1.9 L |
Bore/Stroke | 3.00x4.00 inches
76 x 102 mm |
Rated RPM | 1400 |
Firing order | 1-3-4-2 |
Starter | manual |
| electric OptOptional |
Starter volts | 6 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 13 qts
12.3 L |
