farmall b

OverviewEngineTransmissionDimensionsTestsPhotos
Farmall B tractor photo
1939 - 1947 Row-Crop tractor
1939 - 1947
Row-Crop tractor
1939 - 1947
Row-Crop tractor
1939 - 1947
Row-Crop tractor
Tractor Tests
NTTL 331: gasoline 4-speed 2WD
NTTL 332: distillate 4-speed 2WD
Nebraska Tractor Test 331

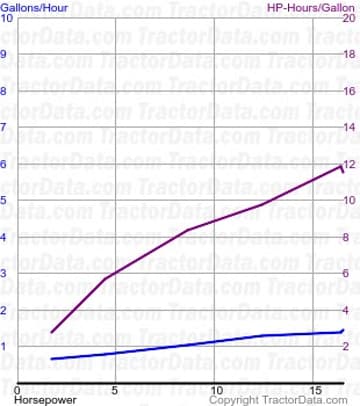

B fuel use from test 331
B fuel use from test 331
B fuel use from test 331
B fuel use from test 331
Nebraska Tractor Test 331
Gasoline 4-speed 2WD September 25 - 29, 1939 Link: Nebraska Tractor Test 331 file
Belt power (max)
18.39 hp 13.7 kW
Belt fuel use (max)
1.6 gal/hour 6.1 l/hour
Drawbar performance
Max power
16.21 hp 12.1 kW
Gear 2 used for power test.
Max pull
2,377 lbs 1078 kg
Gear 1 used for pull test.
Nebraska Tractor Test 332

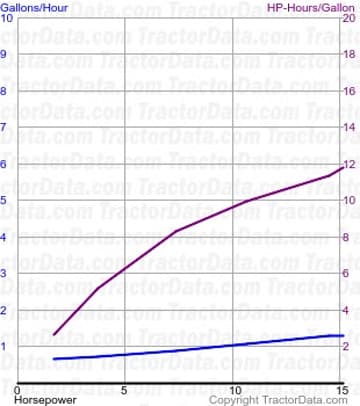

B fuel use from test 332
B fuel use from test 332
B fuel use from test 332
B fuel use from test 332
Nebraska Tractor Test 332
Distillate 4-speed 2WD October 9 - 13, 1939 Link: Nebraska Tractor Test 332 file
Belt power (max)
16.00 hp 11.9 kW
Belt fuel use (max)
1.4 gal/hour 5.3 l/hour
Drawbar performance
Max power
14.73 hp 11.0 kW
Fuel use
1.2 gal/hour 4.5 l/hour
Gear 2 used for power test.
Max pull
2,463 lbs 1117 kg
Gear 1 used for pull test.
