Fendt 411 Vario

The Fendt 411 Vario is a tractor produced by Fendt. It is equipped with a 246.4 ci 4.0 L engine. The listed engine power is Diesel (net): 99.2 hp / 74.0 kW; Diesel (gross): 112.7 hp / 84.0 kW. Transmission: Vario. Operating weight: 11905 lbs 5400 kg.

Overview

	2006 - 2012 400 Vario SeriesRow-Crop tractor 400 Vario Series Row-Crop tractor

Production
Manufacturer	Fendt (a part of AGCO)
Row-Crop tractor

Fendt 411 Vario Engine
Deutz 4.0L 4-cyl diesel
Fuel tank	64.7 gal 244.9 L
Engine details ...

Fendt 411 Vario Transmission
continuously variable transmission
Transmission details ...

Fendt 411 Vario Power
Engine (gross)	112.7 hp 84.0 kW
Engine (net)	99.2 hp 74.0 kW
Engine (max)	118 hp 88.0 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with heat. Air-conditioning optional.

Hydraulics
Type	load sensing
Pressure	2900 psi 200.0 bar
Pump flow	19.8 gpm 74.9 lpm
	29.1 gpmOptOptional 110.1 lpm

Tractor hitch
Rear Type	III/II
Rear lift	16424 lbs 7449 kg
Front lift	6834 lbs 3099 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E/1000
Front PTO	independent OptOptional
Front PTO Type	540
	1000

Dimensions & Tires
Wheelbase	95.2 inches 241 cm
Weight	11905 lbs 5400 kg
Front tire	480/65R24
Rear tire	540/65R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	150
Charging volts	14
Battery volts	12
Battery AH	90

References
Fendt 400 Vario published in 2006
Fendt 400 Vario published in 2008
Fendt 400 Vario published in 2010

Engine

Engine Detail — 246.4 ci / 4.0 L Diesel

Manufacturer	Deutz
Configuration	turbocharged intercooled diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	246.4 ci 4.0 L
Bore/Stroke	3.98x4.96 inches 101 x 126 mm
Rated Power (net)	99.2 hp 74.0 kW
Rated Power (gross)	112.7 hp 84.0 kW
Maximum Power (net)	114 hp 85.0 kW
Maximum Power (gross)	118 hp 88.0 kW
Rated RPM	2100
Torque	372.5 lb-ft 505.1 Nm
Torque RPM	1400
Starter	electric
Starter volts	12

Transmission

Transmission — Vario

Transmission	Vario
Type	continuously variable transmission
Gears	infinite forward and reverse

Dimensions

Fendt 411 Vario Tires
Standard tires (ag)	Front: 480/65R24. Rear: 540/65R38
Optional tires (ag)	Front: 270/95R32. Rear: 270/95R48
	Front: 540/65R24. Rear: 600/65R38
	Front: 480/60R28. Rear: 650/60R38

Dimensions
Wheelbase	95.2 inches 241 cm
Length	167.4 inches 425 cm
Width	92.1 inches 233 cm
Height	114.2 inches 290 cm
Weight	11905 lbs 5400 kg
Max weight	19842 lbs 9000 kg
Ground clearance	18.2 inches 46 cm
Front tread	71.7 inches 182 cm
Rear tread	70.9 inches 180 cm

Attachments

Attachment overview
Fendt 4X/75 loader
Fendt 4X/60 loader

Photos

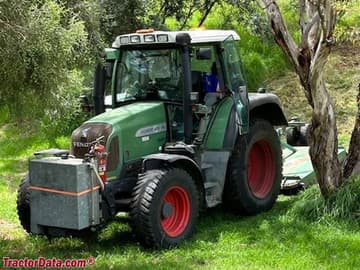

Fendt 411 Vario
