Fendt Farmer 2
The Fendt Farmer 2 is a tractor produced by Fendt. It is equipped with a 122.7 ci 2.0 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: ZF A-210. Operating weight: 4013 lbs 1820 kg.
Engine Power
Diesel (listed): 35 hp / 26.1 kW
Fuel & Capacities
10.6 gal
40.1 L
Transmission
ZF A-210
Operating Weight
4013 lbs
1820 kg
Overview
 | 1960 - 1967
Farmer 2 Series |
|---|
Production | |
|---|---|
Manufacturer | Fendt |
Fendt Farmer 2 Engine | |
|---|---|
MWM 2.0L 3-cyl diesel | |
Fuel tank | 10.6 gal
40.1 L |
Engine details ...  | |
Fendt Farmer 2 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Fendt Farmer 2 Power | |
|---|---|
Engine | 35 hp
26.1 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear lift | 3307 lbs
1500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 77.6 inches
197 cm |
Weight | 4013 lbs
1820 kg |
Front tire | 5.50-16 |
Rear tire | 9.5-32 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
Battery volts | 12 |
Engine
Engine Detail — 122.7 ci / 2.0 L Diesel
Manufacturer | MWM KD 110.5 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 122.7 ci
2.0 L |
Bore/Stroke | 3.543x4.134 inches
90 x 105 mm |
Power | 35 hp
26.1 kW |
Rated RPM | 2100 |
Starter volts | 12 |
Transmission
Transmission — ZF A-210
Transmission | ZF A-210 |
Gears | 8 forward and 4 reverse |
 | |
Dimensions
Fendt Farmer 2 Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 9.5-32 |
Dimensions | |
|---|---|
Wheelbase | 77.6 inches
197 cm |
Length | 128.4 inches
326 cm |
Height | 84.7 inches
215 cm |
Weight | 4013 lbs
1820 kg |
Photos

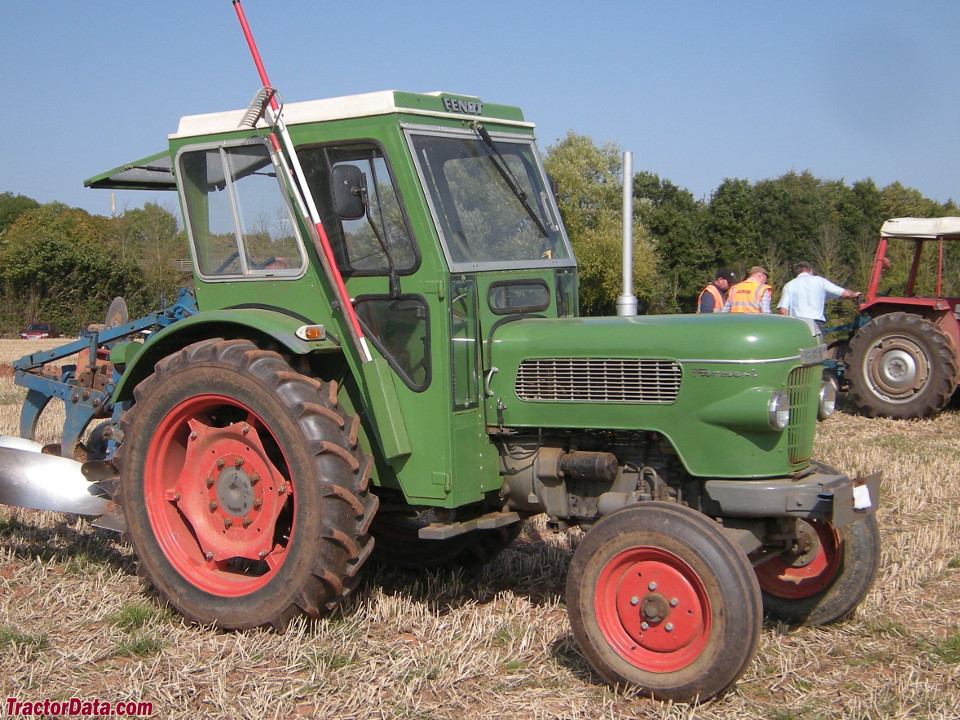

Fendt Farmer 2
Recommended Implements & Sizing Guide
Engineering recommendations for Fendt Farmer 2 based on its 35 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fendt Farmer 2.
Estimated Continuous Field Runtime: 5.8 hrs
Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (10.6 gal / 40.1 L).
Estimated 75% Load Fuel Burn~1.8 gal/hr (6.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fendt Farmer 2 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fendt Farmer 2.
Converted Equivalents:
Horsepower (HP)35 hp
Kilowatts (kW)26.1 kW
Metric Horsepower (PS / CV)35.5 PS
Direct Competitor Comparison
Compare Fendt Farmer 2 against same-era industry alternatives in the same horsepower class.
Current Model
Fendt
Fendt Farmer 2
Engine Power:Diesel (listed): 35 hp / 26.1 kW
★ Baseline Reference
