Massey Ferguson 1040

The Massey Ferguson 1040 is a tractor produced by Massey Ferguson. It is equipped with a 121.7 ci 2.0 L engine. The listed engine power is Diesel (listed): 32 hp / 23.9 kW. Transmission: 12 forward and 3 reverse. Operating weight: 3350 to 3675 pounds.

Engine Power

Diesel (listed): 32 hp / 23.9 kW

Fuel & Capacities

7.9 gal 29.9 L

Transmission

12 forward and 3 reverse

Operating Weight

3350 to 3675 pounds

Overview

	1984 - 1986 1000 Compact SeriesCompact Utility tractorToyosha built 1000 Compact Series Compact Utility tractor Toyosha built

Production
Distributor	Massey Ferguson
Manufacturer	Toyosha
Compact Utility tractor
Original price was $10,800 in 1986

Massey Ferguson 1040 Engine
Toyosha 2.0L 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Massey Ferguson 1040 Transmission
12-speed gear
Transmission details ...

Massey Ferguson 1040 Power
Engine	32 hp 23.9 kW
PTO (claimed)	27 hp 20.1 kW

Mechanical
Two- or four-wheel drive
Steering	power
Mechanical disc brakes
Two-post ROPS.

Hydraulics
Type	open center
Pump flow	6.5 gpm 24.6 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1729 lbs 784 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540
Front PTO	independent (optional)
Clutch	electric

Dimensions & Tires
Wheelbase	69.9 inches 177 cm
Weight	3350 to 3675 pounds
Front tire	5.50-16
Rear tire	13.6x24 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

Compact Tractors published in 1986, by Massey Ferguson

Engine

Engine Detail — 121.7 ci / 2.0 L Diesel

Manufacturer	Toyosha 3D200
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	121.7 ci 2.0 L
Bore/Stroke	3.622x3.937 inches 92 x 100 mm
Power	32 hp 23.9 kW
Fuel system	direct injection
Rated RPM	2500
Firing order	1-3-2
Starter volts	12
Oil capacity	5.8 qts 5.5 L
Coolant capacity	8.5 qts 8.0 L

Transmission

Transmission — 12 forward and 3 reverse gear

Type	gear
Gears	12 forward and 3 reverse
Clutch	240mm dry disc
Oil capacity	46.5 qts 44.0 L

Dimensions

Massey Ferguson 1040 Tires
Standard tires (ag)	Front: 5.50-16. Rear: 13.6x24 (2WD)
	Front: 8.00x16. Rear: 13.6x24 (4WD)
Ag rear	13.6-24
Lawn/turf front	27x8.50-15
Lawn/turf rear	18.4x16.1

Dimensions
Wheelbase	69.9 inches 177 cm
Length	115 inches 292 cm
Width	58.5 inches 148 cm
Height (steering wheel)	60.4 inches 153 cm
Shipping weight	3350 lbs (2WD) 1519 kg
	3675 lbs (4WD) 1666 kg

Attachments

Attachment overview
72" mid-mount mower deck
Blade
Massey Ferguson 1016 loader
Massey Ferguson 232 loader
Backhoe

72" Mower deck
Type	mid-mount Massey Ferguson 1019
Cutting width	72 inches 182 cm

Massey Ferguson 1017 Backhoe
Backhoe type	Massey Ferguson 1017 Backhoe

Photos

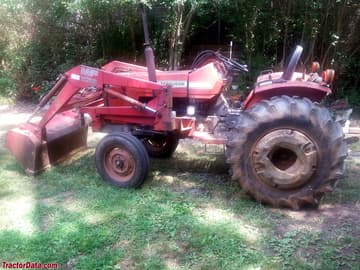

Massey Ferguson 1040 with 1016 front-end loader.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1040 based on its 32 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1040.

Estimated Continuous Field Runtime: 4.7 hrs

Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (7.9 gal / 29.9 L).

Estimated 75% Load Fuel Burn~1.7 gal/hr (6.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
