Fendt Farmer 312
The Fendt Farmer 312 is a tractor produced by Fendt. It is equipped with a 380.4 ci 6.2 L engine. The rated power output is 125 hp 93.2 kW. Transmission: 21 forward and reverse. Operating weight: 11796 lbs 5350 kg.
Engine Power
125 hp
93.2 kW
Fuel & Capacities
42.3 gal
160.1 L
Transmission
21 forward and reverse
Operating Weight
11796 lbs
5350 kg
Fendt Farmer 312 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1993 - 2000
Farmer 300 SeriesRow-Crop tractor |
|---|---|
1993 - 2000 | |
Farmer 300 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Fendt |
Row-Crop tractor | |
Fendt Farmer 312 Engine | |
|---|---|
MWM 6.2L 6-cyl diesel | |
Fuel tank | 42.3 gal
160.1 L |
Engine details ...  | |
Fendt Farmer 312 Transmission | |
|---|---|
21-speed three-speed power shift | |
Transmission details ...  |
Fendt Farmer 312 Power | |
|---|---|
Engine | 125 hp
93.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic disc brakes | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Pump flow | 19.8 gpm
74.9 lpm |
Tractor hitch | |
|---|---|
Rear lift | 12819 lbs
5814 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/750/1000 |
Front PTO | independent OptOptional |
Clutch | electro-hydraulic |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 101.9 inches
258 cm |
Weight | 11796 lbs
5350 kg |
Front tire | 420/70R28 |
Rear tire | 520/70R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Battery volts | 12 |
Battery AH | 135 |
References | |
|---|---|
 | |
Farmer 307 - 308 - 309 - 310 - 311 - 312 published in 1993, by Fendt |
Engine
Engine Detail — 380.4 ci / 6.2 L Diesel
Manufacturer | MWM TD226.B6 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 380.4 ci
6.2 L |
Bore/Stroke | 4.134x4.72 inches
105 x 120 mm |
Power | 125 hp
93.2 kW |
Rated RPM | 2400 |
Torque | 354 lb-ft
480.0 Nm |
Torque RPM | 1500 |
Starter | electric |
Starter volts | 12 |
Transmission

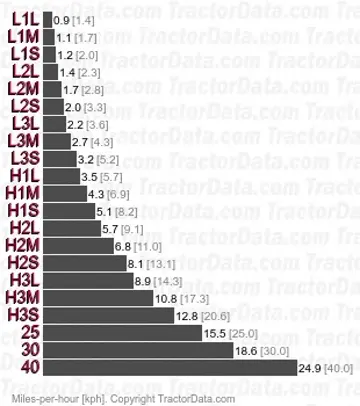

Transmission — 21 forward and reverse three-speed power shift
Type | three-speed power shift |
Gears | 21 forward and reverse |
Three gears, in two ranges, with a three-speed power shift. Additional three overdrive gear ranges. The 40 kph overdrive was not available in all markets. | |
 | |
Dimensions
Fendt Farmer 312 Tires | |
|---|---|
Standard tires (ag) | Front: 420/70R28. Rear: 520/70R38 |
Optional tires (ag) | Front: 16.9R26. Rear: 18.4R38 |
Front: 480/70R26. Rear: 520/70R38 | |
Front: 480/65R38. Rear: | |
Front: 600/65R38. Rear: | |
Front: 9.5R36. Rear: | |
Front: 11.2R48. Rear: | |
Front: 12.4R32. Rear: 12.4R46 | |
Dimensions | |
|---|---|
Wheelbase | 101.9 inches
258 cm |
Length | 176.4 inches
448 cm |
Width | 91.3 inches
231 cm |
Height (cab) | 111 inches
281 cm |
Weight | 11796 lbs
5350 kg |
Max weight | 16535 lbs
7500 kg |
Front tread | 70.9 inches
180 cm |
Rear tread | 70.9 inches
180 cm |
