Fendt Farmer 310

The Fendt Farmer 310 is a tractor produced by Fendt. It is equipped with a 253.5 ci 4.2 L engine. The rated power output is 105 hp 78.3 kW. Transmission: 21 forward and reverse. Operating weight: 10804 lbs 4900 kg.

Overview

	1993 - 2000 Farmer 300 SeriesRow-Crop tractor
1993 - 2000
Farmer 300 Series
Row-Crop tractor

Production
Manufacturer	Fendt
Row-Crop tractor

Fendt Farmer 310 Engine
MWM 4.2L 4-cyl diesel
Fuel tank	35.7 gal 135.1 L
Engine details ...

Fendt Farmer 310 Transmission
21-speed three-speed power shift
Transmission details ...

Fendt Farmer 310 Power
Engine	105 hp 78.3 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Hydraulics
Pump flow	19.8 gpm 74.9 lpm

Tractor hitch
Rear lift	11333 lbs 5140 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/750/1000
Front PTO	independent OptOptional
Clutch	electro-hydraulic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	91.9 inches 233 cm
Weight	10804 lbs 4900 kg
Front tire	420/70R24
Rear tire	480/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Battery volts	12
Battery AH	110

References
Farmer 307 - 308 - 309 - 310 - 311 - 312 published in 1993, by Fendt

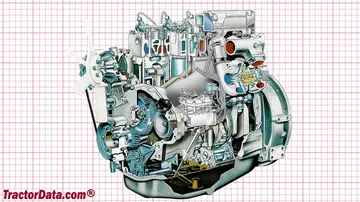

Engine

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer	MWM TD226.B4
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	253.5 ci 4.2 L
Bore/Stroke	4.134x4.72 inches 105 x 120 mm
Power	105 hp 78.3 kW
Rated RPM	2300
Torque	309.1 lb-ft 419.1 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Fendt Farmer 310 Engine

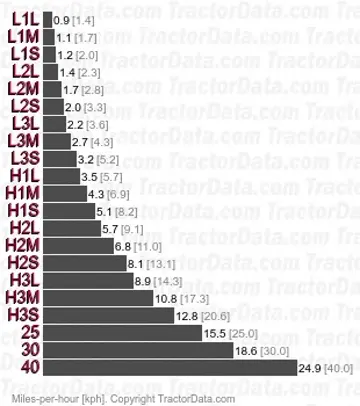

Transmission

Transmission — 21 forward and reverse three-speed power shift

Type	three-speed power shift
Gears	21 forward and reverse
Three gears, in two ranges, with a three-speed power shift. Additional three overdrive gear ranges. The 40 kph overdrive was not available in all markets.

Dimensions

Fendt Farmer 310 Tires
Standard tires (ag)	Front: 420/70R24. Rear: 480/70R38
Optional tires (ag)	Front: 14.9R24. Rear: 16.9R38
	Front: 16.9R24. Rear: 18.4R38
	Front: 480/70R24. Rear: 520/70R38
	Front: 480/70R24. Rear: 600/65R38
	Front: 420/70R24. Rear: 520/70R34
	Front: 11.2R32. Rear: 11.2R48
	Front: 11.2R32. Rear: 12.4R46
	Front: 9.5R32. Rear: 9.5R48

Dimensions
Wheelbase	91.9 inches 233 cm
Length	164.6 inches 418 cm
Width	89.8 inches 228 cm
Height (cab)	110 inches 279 cm
Weight	10804 lbs 4900 kg
Max weight	16535 lbs 7500 kg
Front tread	72.4 inches 183 cm
Rear tread	70.9 inches 180 cm

Attachments

Attachment overview
Fendt 3/60 loader
Fendt 3S loader

Photos

Fendt Farmer 310
