ferguson f 40
 | 1956 - 1957
Utility tractor | 1956 - 1957 | Utility tractor |
|---|---|---|---|
1956 - 1957 | |||
Utility tractor | |||
1956 - 1957 | |
|---|---|
Utility tractor |
Engine Detail | |
|---|---|
Continental Z-134 | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Displacement | 134 ci
2.2 L |
Bore/Stroke | 3.3125x3.875 inches
84 x 98 mm |
Air cleaner | oil bath |
Compression | 6.6:1 |
Rated RPM | 2000 |
Idle RPM | 400-2200 |
Starter volts | 12 |
Coolant capacity | 10 qts
9.5 L |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.022 inches
0.559 mm |
Intake valve clearance | 0.015 inches (cold)
0.381 mm |
Exhaust valve clearance | 0.015 inches (cold)
0.381 mm |

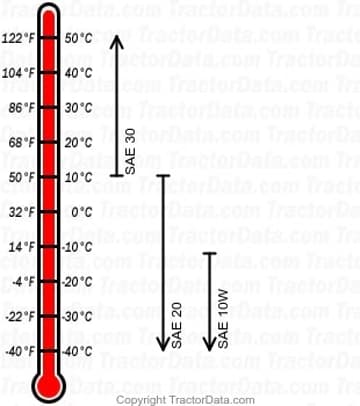

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
