Ferguson Pony
The Ferguson Pony is a tractor produced by Ferguson. It is equipped with a 62 ci 1.0 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 1450 to 1890 pounds.
Fuel & Capacities
7 gal
26.5 L
Transmission
3 forward and 1 reverse
Operating Weight
1450 to 1890 pounds
Overview
 | 1952 - 1954
Utility tractor |
|---|
Note: the Ferguson model Pony is the same as the Massey-Harris Pony 11. The following data is from the Pony 11 listing. |
|---|
Production | |
|---|---|
Manufacturer | Ferguson |
Utility tractor | |
Built in Woodstock, Ontario, Canada | |
After Massey-Harris and Ferguson merged, several models were sold under the brand of the other manufacturer. | |
Ferguson Pony Engine | |
|---|---|
Continental 1.0L 4-cyl gasoline | |
Engine details ...  |
Ferguson Pony Transmission | |
|---|---|
3-speed unsynchronized gear | |
Transmission details ...  |
Ferguson Pony Power | |
|---|---|
Plows | 1 |
Drawbar (tested) | 10.43 hp
7.8 kW |
Belt (tested) | 11.62 hp
8.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | bull gear |
Manual steering | |
Differential mechanical contracting band brakes | |
Open operator station. | |
Capacity | |
|---|---|
Fuel | 7 gal
26.5 L |
Hydraulic system | 0.4 gal
1.5 L |
Hydraulics | |
|---|---|
Type | optional |
Capacity | 0.4 gal
1.5 L |
Pump flow | 2.5 gpm
9.5 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO | optional |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 66 inches
167 cm |
Weight | 1450 to 1890 pounds |
Front tire | 4.00x-15 |
Rear tire | 8-24 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 6 inches
15 cm |
Width | 5.5 inches
13 cm |
RPM | 1990 |
Speed | 3300 ft/min
1005.84 meters/min |
Electrical | |
|---|---|
Charging system | generator |
Engine
Note: the Ferguson model Pony is the same as the Massey-Harris Pony 11. The following data is from the Pony 11 listing. |
|---|
Engine Detail — 62 ci / 1.0 L Gasoline
Manufacturer | Continental N62 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 62 ci
1.0 L |
Bore/Stroke | 2.375x3.50 inches
60 x 89 mm |
Air cleaner | oil bath |
Compression | 6.5:1 |
Rated RPM | 1800 |
Oil capacity | 4 qts
3.8 L |
Coolant capacity | 7 qts
6.6 L |
Sparkplug | Champion 18625A |
Transmission
Note: the Ferguson model Pony is the same as the Massey-Harris Pony 11. The following data is from the Pony 11 listing. |
|---|
Transmission — 3 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 3 forward and 1 reverse |
Clutch | mechanical dry disc |
Oil capacity | 3.6 qts
3.4 L |
With 8-24 rear tires. | |
 | |
Dimensions
Note: the Ferguson model Pony is the same as the Massey-Harris Pony 11. The following data is from the Pony 11 listing. |
|---|
Ferguson Pony Tires | |
|---|---|
Ag front | 4.00x-15 |
Ag rear | 8-24 |
Ag rear | 9-24 |
Dimensions | |
|---|---|
Wheelbase | 66 inches
167 cm |
Height | 60 inches
152 cm |
Front tread | 45 to 75.5 inches
114 to 191 cm |
Rear tread | 41 to 72 inches
104 to 182 cm |
Ferguson Pony Weight | |
|---|---|
Shipping | 1450 lbs
657 kg |
Operating | 1890 lbs
857 kg |
Ballasted | 2547 lbs
1155 kg |
Tests
Note: the Ferguson model Pony is the same as the Massey-Harris Pony 11. The following data is from the Pony 11 listing. |
|---|
Nebraska Tractor Test 401 | |
|---|---|
Gasoline 3-speed 2WD
September 14 - 22, 1948
Link: Nebraska Tractor Test 401 file | |
Belt power (max) | 11.62 hp
8.7 kW |
Belt fuel use (max) | 1.2 gal/hour
4.5 l/hour |
Drawbar performance | |
Max power | 10.43 hp
7.8 kW |
Gear 2 used for power test. | |
Max pull | 1432 lbs
649 kg |
Gear 1 used for pull test. | |
Attachments
Note: the Ferguson model Pony is the same as the Massey-Harris Pony 11. The following data is from the Pony 11 listing. |
|---|
Photos

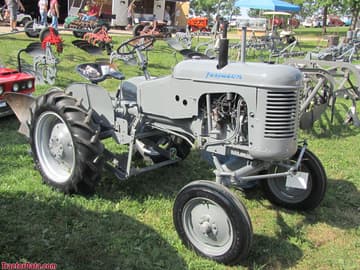

Ferguson Pony
Ferguson Pony
Ferguson Pony operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ferguson Pony.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ferguson Pony Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ferguson Pony.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
