Ferguson FE-35
The Ferguson FE-35 is a tractor produced by Ferguson. It is equipped with a 137.89 ci 2.3 L engine. The listed engine power is Diesel (listed): 34 hp / 25.4 kW. Transmission: 6 forward and 2 reverse. Operating weight: 3093 lbs 1402 kg.
Engine Power
Diesel (listed): 34 hp / 25.4 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Operating Weight
3093 lbs
1402 kg
Overview
 | 1956 - 1960
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Ferguson (a part of Massey Ferguson) |
Utility tractor | |
Built in Coventry, England | |
The Ferguson FE-35 was in production as the Ferguson and Massey-Harris companies merged into Massey Ferguson. The tractor began production in grey-and-gold paint with Ferguson badging. The paint changed to red and grey in late 1957 but the Ferguson decals remained. At some point between 1958 and 1960 the Ferguson name disappeared in favor of Massey Ferguson. | |
Ferguson FE-35 Transmission | |
|---|---|
6-speed unsynchronized gear | |
Transmission details ...  |
Ferguson FE-35 Power | |
|---|---|
Engine | 34 hp
25.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Differential shoe brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission (special) |
live (deluxe) | |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 3093 lbs
1402 kg |
Full dimensions and tires ...  | |
Engine
Engine options | |
|---|---|
Standard 2.2L 4-cyl gasoline | |
Standard 2.3L 4-cyl diesel |
Engine Detail — 133.5 ci / 2.2 L Gasoline
Manufacturer | Standard |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 133.5 ci
2.2 L |
Bore/Stroke | 3.425x3.622 inches
87 x 92 mm |
Starter volts | 6 |
Engine Detail — 137.89 ci / 2.3 L Diesel
Manufacturer | Standard 23C |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 137.89 ci
2.3 L |
Power | 34 hp
25.4 kW |
Compression | 20:1 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Transmission
Transmission — 6 forward and 2 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 6 forward and 2 reverse |
 | |
Dimensions
Ferguson FE-35 Tires |
|---|
Dimensions | |
|---|---|
Operating weight | 3093 lbs
1402 kg |
Photos

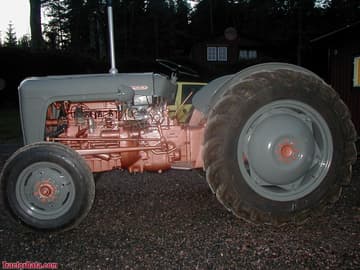

Ferguson 35 Special, left side.
Ferguson FE-35, right side.
Ferguson 35, right side.
Ferguson FR-35 with Gardener front-end loader.
Late FE-35 in red.
Late FE-35 in red.
Recommended Implements & Sizing Guide
Engineering recommendations for Ferguson FE-35 based on its 34 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ferguson FE-35.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ferguson FE-35 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ferguson FE-35.
Converted Equivalents:
Horsepower (HP)34 hp
Kilowatts (kW)25.4 kW
Metric Horsepower (PS / CV)34.5 PS
