Ferguson TE-20
The Ferguson TE-20 is a tractor produced by Ferguson. It is equipped with a 120 ci 2.0 L engine. The rated power output is 25.41 hp 18.9 kW. Transmission: 4 forward and 1 reverse. Operating weight: 2,760 lbs 1251 kg.
Engine Power
25.41 hp
18.9 kW
Fuel & Capacities
10 gal
37.9 L
Transmission
4 forward and 1 reverse
Operating Weight
2,760 lbs
1251 kg
Ferguson TE-20 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1946 - 1948
Utility tractor |
|---|---|
1946 - 1948 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Ferguson |
Utility tractor | |
Built in Coventry, England | |
Total built | 172,185 |
In 1947 the Standard engine replaced the Continental engine in the TE20, this modified version was named the TEA20. | |
Variants | |
|---|---|
TE-20 | Continental engine |
TEA-20 | Standard engine |
TO-20 | US-built |
TEB-20 | narrow tractor |
Ferguson TE-20 Engine | |
|---|---|
Continental 2.0L 4-cyl gasoline | |
Fuel tank | 10 gal
37.9 L |
Engine details ...  | |
Ferguson TE-20 Transmission | |
|---|---|
4-speed unsynchronized gear | |
Transmission details ...  |
Ferguson TE-20 Power | |
|---|---|
Plows | 2 (14-inch) |
Drawbar (tested) | 20.70 hp
15.4 kW |
Belt (tested) | 25.41 hp
18.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Differential mechanical expanding shoe brakes | |
Open operator station with pressed steel seat. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.125) |
Dimensions & Tires | |
|---|---|
Wheelbase | 70 inches
177 cm |
Weight | 2,760 lbs
1251 kg |
Front tire | 6.00-16 |
Rear tire | 11-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | positive |
Charging system | Lucas generator |
Battery volts | 6 |
References | |
|---|---|
 | |
Dealer Shop Manul TE-20, TO-20 & TO-30 Tractors |
Engine
Engine Detail — 120 ci / 2.0 L Gasoline
Manufacturer | Continental Z-120 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled vertical I-head |
Displacement | 120 ci
2.0 L |
Bore/Stroke | 3.19x3.75 inches
81 x 95 mm |
Fuel use | 2.27 gal/hour
8.6 l/hour |
Air cleaner | oil bath |
Rated RPM | 1750 |
Starter volts | 6 |
Oil capacity | 6 qts
5.7 L |
Transmission
Transmission — 4 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Ferguson TE-20 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 11-28 |
Dimensions | |
|---|---|
Wheelbase | 70 inches
177 cm |
Length | 115 inches
292 cm |
Width | 63.5 inches
161 cm |
Height | 52 inches
132 cm |
Operating weight | 2,760 lbs
1251 kg |
Ballasted weight | 4,510 lbs
2045 kg |
Tests
Nebraska Tractor Test 392 | |
|---|---|
Gasoline 4-speed 2WD
April 26 - May 10, 1948
Link: Nebraska Tractor Test 392 file | |
Belt power (max) | 25.41 hp
18.9 kW |
Belt fuel use (max) | 2.5 gal/hour
9.5 l/hour |
Drawbar performance | |
Max power | 20.70 hp
15.4 kW |
Gear 2 used for power test. | |
Max pull | 2,650 lbs
1202 kg |
Gear 1 used for pull test. | |
Photos

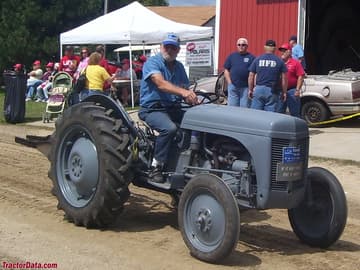

Ferguson TE-20, right side.
Ferguson TE-20, left side.
