Ferguson TEF-20
The Ferguson TEF-20 is a tractor produced by Ferguson. It is equipped with a 127 ci 2.1 L engine. Transmission: 4 forward and 1 reverse.
Fuel & Capacities
Diesel
Transmission
4 forward and 1 reverse
Ferguson TEF-20 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1951 - 1956
Utility tractor |
|---|---|
1951 - 1956 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Ferguson |
Utility tractor | |
Built in Coventry, England | |
Variants | |
|---|---|
TET-20 | industrial tractor |
Ferguson TEF-20 Engine | |
|---|---|
Standard Motor 2.1L 4-cyl diesel | |
Engine details ...  |
Ferguson TEF-20 Transmission | |
|---|---|
4-speed unsynchronized gear | |
Transmission details ...  |
Ferguson TEF-20 Power | |
|---|---|
Belt (claimed) | 26 hp
19.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.125) |
Engine RPM | 545@1500 |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | positive |
Batteries | 2 |
Battery volts | 6 |
Engine
Engine Detail — 127 ci / 2.1 L Diesel
Manufacturer | Standard Motor |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 127 ci
2.1 L |
Bore/Stroke | 3.1875x4.00 inches
81 x 102 mm |
Rated RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 4 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 4 forward and 1 reverse |
With 10x28 rear tires. | |
 | |
Dimensions
Ferguson TEF-20 Tires |
|---|
Dimensions |
|---|
Photos

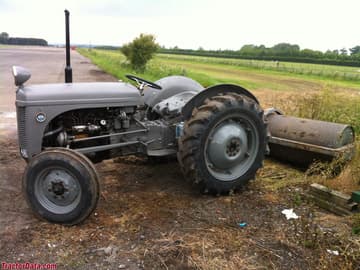

1955 Ferguson TEF-20
Ferguson TEF-20
Ferguson TEF-20
