Ferguson TO-20

The Ferguson TO-20 is a tractor produced by Ferguson. It is equipped with a 120 ci 2.0 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 2760 lbs 1251 kg.

Fuel & Capacities
10 gal 37.9 L
Transmission
4 forward and 1 reverse
Operating Weight
2760 lbs 1251 kg

Overview

Ferguson TO-20 tractor photo
1948 - 1951 Utility tractor
Production
Manufacturer
Ferguson
Utility tractor
Built in Detroit, Michigan, USA
Ferguson TO-20 Engine
Continental 2.0L 4-cyl gasoline
Fuel tank
10 gal 37.9 L
Engine details ...
Ferguson TO-20 Transmission
4-speed constant mesh
Transmission details ...
Ferguson TO-20 Power
Drawbar (tested)
20.70 hp 15.4 kW
Belt (tested)
25.41 hp 18.9 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Differential mechanical expanding shoe (11x2 inch) brakes
Open operator station.
Tractor hitch
Rear Type
I
Power Take-off (PTO)
Rear PTO
transmission
Rear PTO Type
540
Dimensions & Tires
Wheelbase
70 inches 177 cm
Weight
2760 lbs 1251 kg
Front tire
4.00-19
Rear tire
10-28
Full dimensions and tires ...
Electrical
Ground
positive
Charging system
Delco-Remy 181674M91
Charging amps
25
Charging volts
6
Battery volts
6
References
TO-20 references literature
Dealer Shop Manul TE-20, TO-20 & TO-30 Tractors

Engine

Engine Detail — 120 ci / 2.0 L Gasoline

Manufacturer
Continental Z-120
Fuel Type
Gasoline
Configuration
4-cylinder 8-valve, liquid-cooled inline overhead valve
Displacement
120 ci 2.0 L
Bore/Stroke
3.1875x3.75 inches 81 x 95 mm
Fuel system
Marvel Schebler TSX updraft carburetor
Air cleaner
oil bath
Compression
6.1:1
Rated RPM
2200
Torque
88 lb-ft 119.3 Nm
Torque RPM
1200
Firing order
1-3-4-2
Starter volts
6
Oil capacity
6 qts 5.7 L

Transmission

Transmission — 4 forward and 1 reverse constant mesh

Type
constant mesh
Gears
4 forward and 1 reverse
Oil capacity
18 qts 17.0 L
Helical-cut gears.

Dimensions

Ferguson TO-20 Tires
Ag front
4.00-19
Ag rear
10-28
Ag front
6.00-16
Ag rear
11-28
Dimensions
Wheelbase
70 inches 177 cm
Weight
2760 lbs 1251 kg
Front tread
48.5/53/57.5/62/66.5/71/75.5/80 inches 123/134/146/157/168/180/191/203 cm
Rear tread
48/52/56/60/64/68/72/76 inches 121/132/142/152/162/172/182/193 cm

Tests

Nebraska Tractor Test 392
Gasoline 4-speed 2WD April 26 - May 10, 1948 Link: Nebraska Tractor Test 392 file
Belt power (max)
25.41 hp 18.9 kW
Belt fuel use (max)
2.5 gal/hour 9.5 l/hour
Drawbar performance
Max power
20.70 hp 15.4 kW
Gear 2 used for power test.
Max pull
2,650 lbs 1202 kg
Gear 1 used for pull test.

Photos

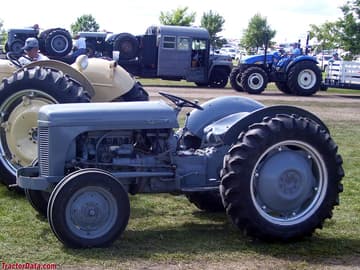

Ferguson TO-20, left side.

Ferguson TO-20, left side.

Ferguson TO-20, right side.

Ferguson TO-20, right side.

Ferguson TO-20 operator station and controls.

Ferguson TO-20 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Ferguson TO-20.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Ferguson TO-20 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Ferguson TO-20.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
