ferguson to 20

OverviewEngineTransmissionDimensionsTestsPhotos
Ferguson TO-20 tractor photo
1948 - 1951 Utility tractor
1948 - 1951
Utility tractor
1948 - 1951
Utility tractor
1948 - 1951
Utility tractor
Nebraska Tractor Test 392

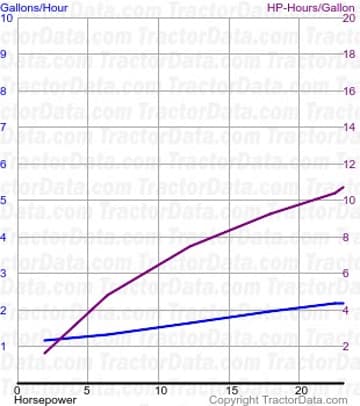

TO-20 fuel use from test 392
TO-20 fuel use from test 392
TO-20 fuel use from test 392
TO-20 fuel use from test 392
Nebraska Tractor Test 392
Gasoline 4-speed 2WD April 26 - May 10, 1948 Link: Nebraska Tractor Test 392 file
Belt power (max)
25.41 hp 18.9 kW
Belt fuel use (max)
2.5 gal/hour 9.5 l/hour
Drawbar performance
Max power
20.70 hp 15.4 kW
Gear 2 used for power test.
Max pull
2,650 lbs 1202 kg
Gear 1 used for pull test.
