Ferguson TO-30
 | 1951 - 1954
Utility tractor |
|---|---|
1951 - 1954 | |
Utility tractor | |
1951 - 1954 | |
|---|---|
Utility tractor |
Engine Detail | |
|---|---|
Continental Z-129 | |
gasoline | |
4-cylinder 8-valve | |
liquid-cooled I-head | |
Displacement | 129 ci
2.1 L |
Bore/Stroke | 3.25x3.875 inches
83 x 98 mm |
Fuel system | Marvel Schebler TSX 458 updraft carburetor |
Air cleaner | oil bath |
Compression | 6.5:1 |
Rated RPM | 2000 |
Torque | 107 lb-ft
145.1 Nm |
Torque RPM | 1100 |
Starter | Delco 1109457 |
Starter volts | 6 |
Coolant capacity | 10 qts
9.5 L |
Sparkplug | AC Delco 86 |
| Champion 8 |
Intake valve clearance | 0.015 inches (cold)
0.381 mm |
Exhaust valve clearance | 0.015 inches (cold)
0.381 mm |

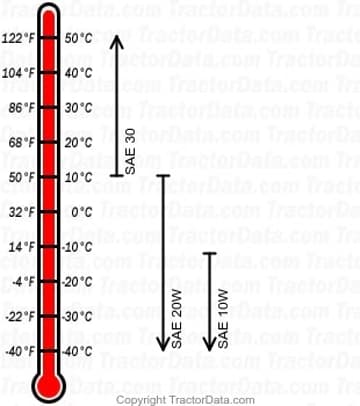

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts (crankcase)
4.7 L |
| 1 qts (filter)
0.9 L |

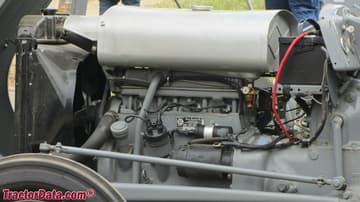

Ferguson TO-30 Engine | |
|---|---|
 |
