ferguson to 35
 | 1954 - 1960
Utility tractor | 1954 - 1960 | Utility tractor |
|---|---|---|---|
1954 - 1960 | |||
Utility tractor | |||
1954 - 1960 | |
|---|---|
Utility tractor |
Engine options | |
|---|---|
Continental 2.2L 4-cyl gasoline | |
Standard Diesel Company 2.3L 4-cyl diesel |
Engine Detail | |
|---|---|
Continental Z-134 | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Displacement | 134 ci
2.2 L |
Bore/Stroke | 3.3125x3.875 inches
84 x 98 mm |
Fuel use | 2.761 gal/hour
10.5 l/hour |
Air cleaner | oil bath |
Compression | 6.6:1 |
Rated RPM | 2000 |
Starter volts | 6 (early) |
| 12 *The 12V starter was first used on tractor serial number 161250. |
Coolant capacity | 10 qts
9.5 L |

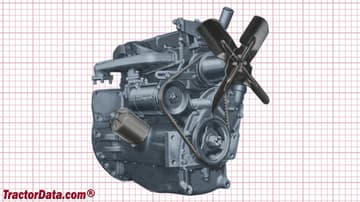

Ferguson TO-35 Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
Standard Diesel Company 23C | |
diesel | |
4-cylinder | |
liquid-cooled vertical L-head | |
The 23C diesel engine was first available in the TO-35 in 1958. | |
Displacement | 137.8 ci
2.3 L |
Bore/Stroke | 3.3125x4.00 inches
84 x 102 mm |
Fuel use | 2.249 gal/hour
8.5 l/hour |
Air cleaner | oil bath |
Pre-heating | glow plugs |
Compression | 20:1 |
Rated RPM | 2000 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Coolant capacity | 9 qts
8.5 L |
Intake valve clearance | 0.012 inches (cold)
0.305 mm |
Exhaust valve clearance | 0.008 inches (cold)
0.203 mm |

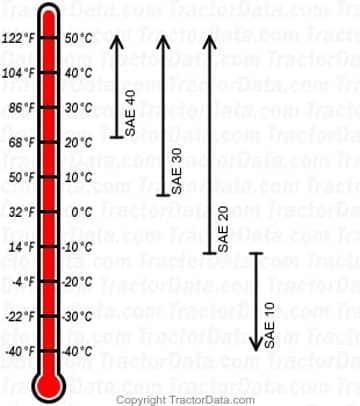

Engine Oil | |
|---|---|
 | |
Oil capacity | 7.5 qts
7.1 L |
