Fiat 400

The Fiat 400 is a tractor produced by Fiat. It is equipped with a 136.62 ci 2.2 L engine. The rated power output is 38 hp 28.3 kW. Transmission: 9 forward and 3 reverse. Operating weight: 3750 to 4729 pounds.

Overview

	1968 - 1971	1968 - 1971

Production
Manufacturer	Fiat

Fiat 400 Engine
Fiat 2.2L 3-cyl diesel
Engine details ...

Fiat 400 Power
Engine	38 hp 28.3 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Hydraulics
Pump flow	5.8 gpm 22.0 lpm

Tractor hitch
Rear Type	I
Rear lift	3087 lbs 1400 kg

Power Take-off (PTO)
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	75.6 inches 192 cm
Weight	3750 to 4729 pounds
Front tire	6.00-16
Rear tire	12.4-28
Full dimensions and tires ...

Engine

Engine Detail — 136.62 ci / 2.2 L Diesel

Manufacturer	Fiat 853
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	136.62 ci 2.2 L
Bore/Stroke	3.74x4.33 inches 95 x 110 mm
Power	38 hp 28.3 kW
Rated RPM	2200
Starter volts	12

Transmission

Transmission options
6-speed gear
9-speed creeper

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Three gears (1-3), plus reverse (R), in two ranges (low/high).
With 11-28 rear tires.

Transmission — 9 forward and 3 reverse creeper

Type	creeper
Gears	9 forward and 3 reverse
Optional creeper adds an additional low range to the standard transmission.
With 11-28 rear tires.

Dimensions

Fiat 400 Tires
Ag front	6.00-16
	7.50-20 (4WD)
Ag rear	12.4-28

Dimensions
Wheelbase	75.6 inches 192 cm
Length	124.8 inches 316 cm
Width	63.8 inches 162 cm
Height (steering wheel)	51.6 inches 131 cm
2WD Weight	3750 lbs 1701 kg
4WD Weight	4729 lbs 2145 kg
Front tread	50.4 to 74 inches 128 to 187 cm
Rear tread	51.2 to 74.8 inches 130 to 189 cm

Photos

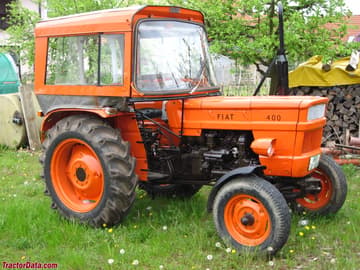

Fiat 400
