Fiat 350

The Fiat 350 is a tractor produced by Fiat. It is equipped with a 105.5 ci 1.7 L engine. The rated power output is 35 hp 26.1 kW. Transmission: 6 forward and 2 reverse. Operating weight: 3053 to 3439 pounds.

Overview

	1968 - 1974 Utility tractor
1968 - 1974
Utility tractor

Production
Manufacturer	Fiat
Utility tractor
Built in Modena, Italy

Variants
350DT	4WD

Fiat 350 Engine
Fiat 1.7L 2-cyl diesel
Fuel tank	9 gal 34.1 L
Engine details ...

Fiat 350 Transmission
6-speed gear
Transmission details ...

Fiat 350 Power
Engine	35 hp 26.1 kW

Mechanical
Two- or four-wheel drive
Final drives	spur gear
Differential lock	mechanical rear
Manual steering
Mechanical band brakes
Open operator station.

Hydraulics
Type	open center
Pump flow	3.8 gpm 14.4 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift	2469 lbs 1119 kg

Power Take-off (PTO)
Rear PTO	transmission
	live OptOptional
Rear PTO Type	540 (1.375)
Engine RPM	540@2120
Engine RPM	1105@2500

Dimensions & Tires
Wheelbase	69.9 inches 177 cm
Weight	3053 to 3439 pounds
Front tire	5.00-16
2WD Rear tire	11.2/10-28
Full dimensions and tires ...

Belt Pulley
Diameter	9.8 inches 24 cm
Width	5.9 inches 14 cm
RPM	1300

Electrical
Ground	negative
Battery volts	12
Battery AH	77

References
350 published in 1971, by Fiat
350 DT published in 1971, by Fiat

Engine

Engine Detail — 105.5 ci / 1.7 L Diesel

Manufacturer	Fiat 8025
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	105.5 ci 1.7 L
Bore/Stroke	3.94x4.33 inches 100 x 110 mm
Power	35 hp 26.1 kW
Fuel system	direct
Air cleaner	oil bath
Compression	17:1
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Clutch	254mm dry disc
With 10-28 rear tires.

Dimensions

Fiat 350 Tires
2WD Standard tires (ag)	Front: 5.00-16. Rear: 11.2/10-28
4WD Standard tires (ag)	Front: 7.50-18. Rear: 11.2/10-24

Dimensions
Wheelbase	69.9 inches 177 cm
2WD Length	107.6 inches 273 cm
4WD Length	108.3 inches 275 cm
2WD Weight	3053 lbs 1384 kg
4WD Weight	3439 lbs 1559 kg
2WD Clearance (front axle)	18.5 inches 46 cm
4WD Clearance (front axle)	10.6 inches 26 cm
2WD Front tread	46.9 to 66.5 inches 119 to 168 cm
4WD Front tread	50.8/55.3 inches 129/140 cm
Rear tread	47.4 to 67.1 inches 120 to 170 cm

Fiat 350 Height
2WD Steering wheel	55.5 inches 140 cm
4WD Steering wheel	57.5 inches 146 cm
2WD Hood	49.6 inches 125 cm
4WD Hood	51.5 inches 130 cm

Photos

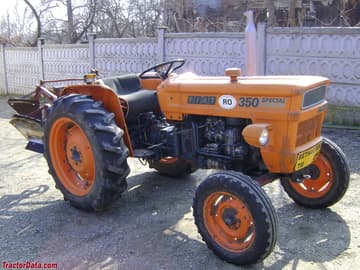

Fiat 350
