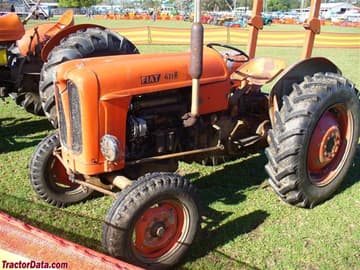

Fiat 411R
The Fiat 411R is a tractor produced by Fiat. It is equipped with a 138.5 ci 2.3 L engine. The listed engine power is Diesel (listed): 40 hp / 29.8 kW. Transmission: 6 forward and 2 reverse. Operating weight: 3131 to 3565 pounds.
Engine Power
Diesel (listed): 40 hp / 29.8 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Operating Weight
3131 to 3565 pounds
Overview
![]() | 1958 - 1964
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Utility tractor | |
Variants | |
|---|---|
411R | utility |
411RB | gasoline engine |
411T | tricycle |
411C | crawler |
421R | orchard |
431R | vineyard |
441R | four-wheel drive |
451C | mountain crawler |
481R | high-crop |
Fiat 411R Engine | |
|---|---|
FIAT 2.3L 4-cyl diesel | |
Engine details ... |
Fiat 411R Transmission | |
|---|---|
6-speed gear | |
Transmission details ... |
Fiat 411R Power | |
|---|---|
Engine | 40 hp
29.8 kW |
Drawbar (tested) | 32.37 hp
24.1 kW |
PTO (tested) | 36.75 hp
27.4 kW |
Performance test details ... | |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live *Two-stage foot clutch |
Clutch | mechanical dry disc |
Rear PTO Type | 540 |
Engine RPM | 540@2160 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.7 inches
182 cm |
Weight | 3131 to 3565 pounds |
Front tire | 6.00-16 |
Rear tire | 11-28 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Batteries | 2 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Use e manutenzionoe 411R 421R |
Engine
Engine Detail — 138.5 ci / 2.3 L Diesel
Manufacturer | FIAT |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 138.5 ci
2.3 L |
Bore/Stroke | 3.35x3.94 inches
85 x 100 mm |
Power | 40 hp
29.8 kW |
Air cleaner | oil bath |
Compression | 21.5:1 |
Rated RPM | 2300 |
Firing order | 1-3-4-2 |
Starter volts | 24 |
Transmission
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Clutch | mechanical dry disc |
![]() | |
Dimensions
Fiat 411R Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 11-28 |
Dimensions | |
|---|---|
Wheelbase | 71.7 inches
182 cm |
Length | 114.2 inches
290 cm |
Width | 59.1 inches*Minimum
150 cm |
Height | 55.5 inches
140 cm |
Ground clearance | 18.9 inches
48 cm |
Front tread | 50.4 to 78 inches
128 to 198 cm |
Rear tread | 47.2 to 74.8 inches
119 to 189 cm |
Fiat 411R Weight | |
|---|---|
3131 lbs
1420 kg | |
Operating | 3565 lbs
1617 kg |
Ballasted | 5791 lbs
2626 kg |
Tests
Nebraska Tractor Test 707 | |
|---|---|
Diesel 6-speed 2WD
June 29, 2959 - July 13, 1959
Link: Nebraska Tractor Test 707 file | |
PTO performance | |
Power at rated engine speed | 36.75 hp
27.4 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Power at rated PTO speed | 35.33 hp
26.3 kW |
Fuel use | 2.7 gal/hour
10.2 l/hour |
Drawbar performance | |
Max power | 32.37 hp
24.1 kW |
Fuel use | 2.8 gal/hour
10.6 l/hour |
Gear 4 used for power test. | |
Max pull | 4526 lbs
2052 kg |
Gear 2 used for pull test. | |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Fiat 411R based on its 40 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 411R.
Estimated Continuous Field Runtime: 1.3 hrs
Approximately 1.3 hours of continuous field operation at ~75% rated power on a full tank (2.8 gal / 10.6 L).
Estimated 75% Load Fuel Burn~2.1 gal/hr (7.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fiat 411R Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 411R.
Converted Equivalents:
Horsepower (HP)40 hp
Kilowatts (kW)29.8 kW
Metric Horsepower (PS / CV)40.6 PS
