Fiat 431R

The Fiat 431R is a tractor produced by Fiat. It is equipped with a 138.5 ci 2.3 L engine. The listed engine power is Diesel (listed): 40 hp / 29.8 kW. Transmission: 6 forward and 2 reverse. Operating weight: 3,350 lbs 1519 kg.

Engine Power
Diesel (listed): 40 hp / 29.8 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Operating Weight
3,350 lbs 1519 kg

Overview

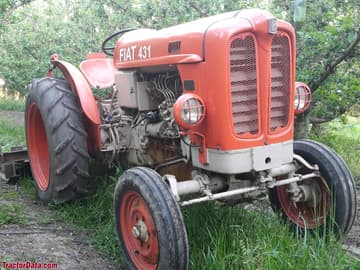

Fiat 431R tractor photo
1964 - 1965 Orchard/Vineyard tractor
Production
Manufacturer
Fiat
Orchard/Vineyard tractor
Variants
411R
utility
411RB
gasoline engine
411T
tricycle
411C
crawler
421R
orchard
431R
vineyard
441R
four-wheel drive
451C
mountain crawler
481R
high-crop
Fiat 431R Engine
FIAT 2.3L 4-cyl diesel
Engine details ...
Fiat 431R Transmission
6-speed gear
Transmission details ...
Fiat 431R Power
Engine
40 hp 29.8 kW
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Rear PTO Type
540
Dimensions & Tires
Weight
3,350 lbs 1519 kg
Front tire
5.00-15
Rear tire
10-28
Full dimensions and tires ...
Electrical
Ground
negative
Batteries
2
Battery volts
12

Engine

Engine Detail — 138.5 ci / 2.3 L Diesel

Manufacturer
FIAT
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
138.5 ci 2.3 L
Bore/Stroke
3.35x3.94 inches 85 x 100 mm
Power
40 hp 29.8 kW
Compression
21.5:1
Rated RPM
2300
Firing order
1-3-4-2
Starter volts
24

Transmission

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse
431R  gear speeds

Dimensions

Fiat 431R Tires
Ag front
5.00-15
Ag rear
10-28
Dimensions
Length
113.5 inches 288 cm
Width
43.25 inches 109 cm
Height
51.125 inches 129 cm
Weight
3,350 lbs 1519 kg

Photos

Fiat 431R

Fiat 431R

Recommended Implements & Sizing Guide

Engineering recommendations for Fiat 431R based on its 40 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 431R.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Fiat 431R Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 431R.

Converted Equivalents:

Horsepower (HP)40 hp
Kilowatts (kW)29.8 kW
Metric Horsepower (PS / CV)40.6 PS

Direct Competitor Comparison

Compare Fiat 431R against same-era industry alternatives in the same horsepower class.

Current Model
Fiat

Fiat 431R

Engine Power:Diesel (listed): 40 hp / 29.8 kW
★ Baseline Reference
DeereMarket Competitor

Deere 445

Engine Power:36
Production Years:1963 - 1970
KubotaMarket Competitor

Kubota L355

Engine Power:36
Production Years:1982 - 1987
Gray TractorMarket Competitor

Gray Tractor 18-36

Engine Power:36
Production Years:1918 - 1921
BelarusMarket Competitor

Belarus 300

Engine Power:36
Production Years:1995 - 1996
  • Fiat 315

    Power:
    33
    Production years:
    1965 - 1968
  • Fiat 35-66

    Power:
    34.5
    Production years:
    1990 - 1998
  • Fiat 355C

    Power:
    34.5
    Production years:
    1971 - 1975
  • Fiat 350

    Power:
    35
    Production years:
    1968 - 1974
  • Fiat 702B

    Power:
    35
    Production years:
    1924 - 1934
