Fiat 580

The Fiat 580 is a tractor produced by Fiat. It is equipped with a 167.8 ci 2.8 L engine. The rated power output is 57.2 hp 42.7 kW. Transmission: 16 forward and 4 reverse. Operating weight: 5149 to 5766 pounds.

Overview

	1978 - 1984 Utility tractor
1978 - 1984
Utility tractor

Production
Manufacturer	Fiat
Utility tractor

Variants
580	utility
570	orchard

Fiat 580 Engine
Fiat 2.8L 3-cyl diesel
Fuel tank	21.1 gal 79.9 L
Engine details ...

Fiat 580 Power
Engine	57.2 hp 42.7 kW
PTO (claimed)	50 hp 37.3 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab optional with available air-conditioning.

Hydraulics
Pump flow	7.4 gpm 28.0 lpm

Tractor hitch
Rear Type	II/I
Rear lift	5292 lbs 2400 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2314

Dimensions & Tires
2WD Wheelbase	85.5 inches 217 cm
4WD Wheelbase	85 inches 215 cm
Weight	5149 to 5766 pounds
Front tire	6.00-19
2WD Rear tire	12.4/11-36
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	33
Battery volts	12

Engine

Engine Detail — 167.8 ci / 2.8 L Diesel

Manufacturer	Fiat 8035
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	167.8 ci 2.8 L
Bore/Stroke	4.06x4.33 inches 103 x 110 mm
Power	57.2 hp 42.7 kW
Air cleaner	dual dry element
Compression	17:1
Rated RPM	2700
Firing order	1-2-3
Starter volts	12

Transmission

Transmission options
8-speed partially synchronized
12-speed
8-speed mechanical shuttle
16-speed creeper

Transmission — 8 forward and 2 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 2 reverse
Four gears (1-4) plus reverse (R) in two ranges (low/high).
With 12.4/11-36 rear tires.

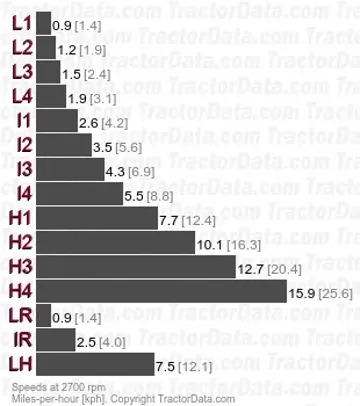

Transmission — 12 forward and 3 reverse

Gears	12 forward and 3 reverse
Four gears (1-4) plus reverse (R) in three ranges (low/intermediate/high).
With 12.4/11-36 rear tires.

Transmission — 8 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and reverse
Four gears (1-4) in two ranges (low/high) with shuttle shift.
With 12.4/11-36 rear tires. Reverse speeds are 10% slower than forward.

Transmission — 16 forward and 4 reverse creeper

Type	creeper
Gears	16 forward and 4 reverse
Four gears (1-4) plus reverse (R) in four ranges (creeper/low/intermediate/high).
With 12.4/11-36 rear tires.

Dimensions

Fiat 580 Tires
2WD Standard tires (ag)	Front: 6.00-19. Rear: 12.4/11-36
4WD Standard tires (ag)	Front: 11.2/10-24. Rear: 12.4/11-36
Optional tires (ag)	Front: 12.4/11-24. Rear: 13.6/12-36
	Front: 9.5/9-24. Rear: 14.9/13-30

Dimensions
2WD Wheelbase	85.5 inches 217 cm
4WD Wheelbase	85 inches 215 cm
2WD Length	130.8 inches 332 cm
4WD Length	135.2 inches 343 cm
2WD Weight	5149 lbs 2335 kg
4WD Weight	5766 lbs 2615 kg
2WD Clearance (front axle)	19 inches 48 cm
4WD Clearance (front axle)	16.1 inches 40 cm
2WD Front tread	55.1 to 74.8 inches 139 to 189 cm
4WD Front tread	60.2 to 77 inches 152 to 195 cm
Rear tread	55.1 to 78.7 inches 139 to 199 cm

Fiat 580 Height
2WD Steering wheel	68.9 inches 175 cm
4WD Steering wheel	69.7 inches 177 cm
2WD Hood	57.9 inches 147 cm
4WD Hood	58.3 inches 148 cm
Cab	98.4 inches 249 cm
2WD Exhaust	98.8 inches 250 cm
4WD Exhaust	99.2 inches 251 cm
