Massey Ferguson 1180

The Massey Ferguson 1180 is a tractor produced by Massey Ferguson. It is equipped with a 169 ci 2.8 L engine. The listed engine power is Diesel (listed): 52 hp / 38.8 kW. Transmission: 16 forward and reverse. Operating weight: 4354 lbs 1974 kg.

Engine Power

Diesel (listed): 52 hp / 38.8 kW

Fuel & Capacities

13.5 gal 51.1 L

Transmission

16 forward and reverse

Operating Weight

4354 lbs 1974 kg

Overview

	1992 - 1999 1100 SeriesCompact Utility tractor 1100 Series Compact Utility tractor

Production
Manufacturer	Massey Ferguson
Compact Utility tractor
Original price was $26,800 in 1999

Variants
TA527	similar Iseki model

Massey Ferguson 1180 Engine
Isuzu 2.8L 4-cyl diesel
Engine details ...

Massey Ferguson 1180 Transmission
16-speed synchronized shuttle
Transmission details ...

Massey Ferguson 1180 Power
Engine	52 hp 38.8 kW
PTO (claimed)	46 hp 34.3 kW

Mechanical
Four-wheel drive
Steering	power
Mechanical wet disc brakes
Two-post fixed ROPS.

Capacity
Fuel	13.5 gal 51.1 L
Hydraulic system	8.5 gal 32.2 L

Hydraulics
Type	open center
Capacity	8.5 gal 32.2 L
Pressure	2417 psi 166.7 bar
Valves	0 to 2
Pump flow	8.2 gpm 31.0 lpm

Tractor hitch
Rear Type	I
Control	position, draft, and response control
Rear lift (at ends)	4850 lbs 2199 kg
Rear lift (at 24"/610mm)	4045 lbs 1834 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	79.9 inches 202 cm
Weight	4354 lbs 1974 kg
Front tire	9.5-18
Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
Battery CCA	799
Battery volts	12

References

MF 1100 Series published in 1995, by Massey Ferguson
1180 published in 1992, by Massey Ferguson

Engine

Engine Detail — 169 ci / 2.8 L Diesel

Manufacturer	Isuzu 4JB1
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	169 ci 2.8 L
Bore/Stroke	3.661x4.016 inches 93 x 102 mm
Power	52 hp 38.8 kW
Fuel system	direct injection
Air cleaner	dual dry element
Pre-heating	glow plugs
Rated RPM	2500
Torque	130 lb-ft 176.3 Nm
Torque RPM	1600
Starter volts	12
Oil capacity	7.4 qts 7.0 L
Coolant capacity	9.5 qts 9.0 L

Transmission

Transmission — 16 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	16 forward and reverse
Clutch	275mm disc

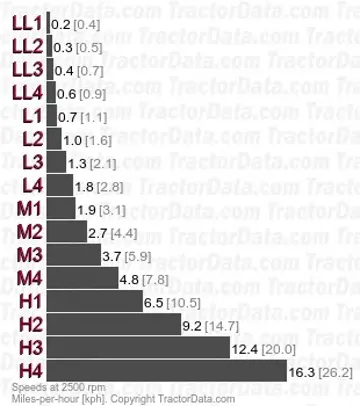

Four gears (1-4) in four ranges (LL, L, M, and H) with shuttle. Gears 3 and 4 are synchronized.
With 14.9x28 rear tires. Reverse speeds are 5% slower than forward.

Dimensions

Massey Ferguson 1180 Tires
Ag front	9.5-18
Ag rear	14.9-28
Lawn/turf front	29x12.00-15
Lawn/turf rear	475/65D-20

Dimensions
Wheelbase	79.9 inches 202 cm
Length	136.6 inches 346 cm
Width	60.8 inches 154 cm
Height (ROPS)	90.6 inches 230 cm
Weight	4354 lbs 1974 kg
Ground clearance	13 inches 33 cm
Front tread	50.4 inches 128 cm
Rear tread	48.8 to 64.6 inches 123 to 164 cm

Photos

Massey Ferguson 1180 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1180 based on its 52 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1180.

Estimated Continuous Field Runtime: 5 hrs

Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (13.5 gal / 51.1 L).

Estimated 75% Load Fuel Burn~2.7 gal/hr (10.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
