Fiat 60-76
The Fiat 60-76 is a tractor produced by Fiat. It is equipped with a 178.9 ci 2.9 L engine. The rated power output is 59.1 hp 44.1 kW. Transmission: 20 forward and 12 reverse. Operating weight: 4564 to 5115 pounds.
Engine Power
59.1 hp
44.1 kW
Fuel & Capacities
Diesel
Transmission
20 forward and 12 reverse
Operating Weight
4564 to 5115 pounds
Fiat 60-76 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1992
76 SeriesOrchard/Vineyard tractor |
|---|---|
1990 - 1992 | |
76 Series | |
Orchard/Vineyard tractor | |
Production | |
|---|---|
Manufacturer | Fiat |
Orchard/Vineyard tractor | |
Original price was $20,800 in 1990 | |
Fiat 60-76 Engine | |
|---|---|
Fiat 2.9L 3-cyl diesel | |
Engine details ...  |
Fiat 60-76 Power | |
|---|---|
Engine | 59.1 hp
44.1 kW |
PTO (claimed) | 51 hp
38.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
Two-post mid-mount ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2697 psi
186.0 bar |
Pump flow | 8.7 gpm
32.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and lower-link draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
540/1000 (1.375)OptOptional | |
Engine RPM | 540@2200 |
1000@2380 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 74.3 inches
188 cm |
4WD Wheelbase | 78.6 inches
199 cm |
Weight | 4564 to 5115 pounds |
Front tire | 6.00-16 |
2WD Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Watts (rated) | 400 |
Battery volts | 12 |
Battery AH | 100 |
References | |
|---|---|
 | |
Fiat 45-76 55-76 60-76 70-76 80-76 (603.64.205.00) published in 1991 |
Engine
Engine Detail — 178.9 ci / 2.9 L Diesel
Manufacturer | Fiat 8035.05 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 178.9 ci
2.9 L |
Bore/Stroke | 4.09x4.53 inches
104 x 115 mm |
Power | 59.1 hp
44.1 kW |
Air cleaner | dry |
Compression | 17:1 |
Rated RPM | 2500 |
Firing order | 1-2-3 |
Starter | electric |
Starter volts | 12 |
Intake valve clearance | 0.010 inches (cold)
0.254 mm |
Exhaust valve clearance | 0.014 inches (cold)
0.356 mm |
Transmission
Transmission options | |
|---|---|
12-speed partially synchronized | |
12-speed mechanical shuttle | |
20-speed creeper shuttle |

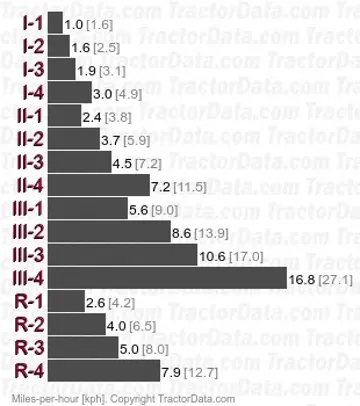

Transmission — 12 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
Clutch | 279.4mm dry disc |
Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range. | |
With 12.4-28 rear tires. | |
 | |

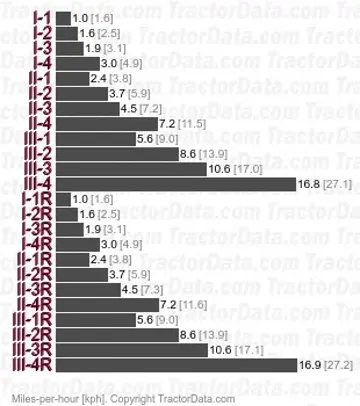

Transmission — 12 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 12 forward and reverse |
Clutch | 254mm dry disc |
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser. | |
With 12.4-28 rear tires. | |
 | |
Transmission — 20 forward and 12 reverse creeper shuttle
Type | creeper shuttle |
Gears | 20 forward and 12 reverse |
Clutch | 254mm dry disc |
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser and creeper. The shuttle-creeper lever is moved forward or back for direction control. Pushing the lever down and forward engages the creeper range. | |
With 12.4-28 rear tires. | |
 | |
Dimensions
Fiat 60-76 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.00-16. Rear: 12.4-28 |
Dimensions | |
|---|---|
2WD Wheelbase | 74.3 inches
188 cm |
4WD Wheelbase | 78.6 inches
199 cm |
2WD Length | 116.1 inches
294 cm |
4WD Length | 120.1 inches
305 cm |
2WD Ground clearance | 16.7 inches
42 cm |
4WD Ground clearance | 11 inches
27 cm |
Fiat 60-76 Weight | |
|---|---|
2WD | 4564 lbs
2070 kg |
4WD | 5115 lbs
2320 kg |
2WD Ballasted | 5038 lbs
2285 kg |
4WD Ballasted | 5589 lbs
2535 kg |
Fiat 60-76 Height | |
|---|---|
Steering wheel | 53.5 inches
135 cm |
Hood | 48.2 inches
122 cm |
2WD ROPS | 96.5 inches
245 cm |
4WD ROPS | 96.3 inches
244 cm |
