Fiat 60-88

The Fiat 60-88 is a tractor produced by Fiat. It is equipped with a 165.4 ci 2.7 L engine. The rated power output is 59.2 hp 44.1 kW. Transmission: 12 forward and reverse. Operating weight: 6614 to 7055 pounds.

Overview

	1990 - 1995 88 SeriesUtility tractor
1990 - 1995
88 Series
Utility tractor

Production
Manufacturer	Fiat
Utility tractor

Fiat 60-88 Engine
Fiat 2.7L 3-cyl diesel
Fuel tank	24.6 gal 93.1 L
Engine details ...

Fiat 60-88 Power
Engine	59.2 hp 44.1 kW
PTO (claimed)	53.6 hp 40.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with heat.

Hydraulics
Pump flow	11.6 gpm 43.9 lpm

Tractor hitch
Rear Type	II/I

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2200

Dimensions & Tires
2WD Wheelbase	87.7 inches 222 cm
4WD Wheelbase	86.6 inches 219 cm
Weight	6614 to 7055 pounds
Front tire	7.50-16
2WD Rear tire	13.6/12-36
Full dimensions and tires ...

References
60-88 Komfort published in 1991, by Fiat

Engine

Engine Detail — 165.4 ci / 2.7 L Diesel

Manufacturer	Fiat 8035.05
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	165.4 ci 2.7 L
Bore/Stroke	3.94x4.53 inches 100 x 115 mm
Power	59.2 hp 44.1 kW
Fuel system	direct injection
Pre-heating	thermostart
Compression	17:1
Rated RPM	2500
Torque	143.1 lb-ft 194.0 Nm
Torque RPM	1500
Starter	electric
Starter volts	12
Oil capacity	6.3 qts 6.0 L

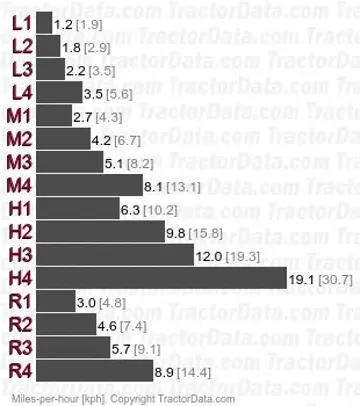

Transmission

Transmission options
12-speed
20-speed creeper
12-speed shuttle

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	279.4mm dry disc
Oil capacity	51.8 qts 49.0 L
With 13.6-36 rear tires.
Transmission
Type	creeper
Gears	20 forward and 8 reverse

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse

Dimensions

Fiat 60-88 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 13.6/12-36
4WD Standard tires (ag)	Front: 12.4/11-24. Rear: 13.6/12-36
2WD Optional tires (ag)	Front: 7.50-16. Rear: 16.9/14-30
4WD Optional tires (ag)	Front: 12.4/11-24. Rear: 16.9/14-30

Dimensions
2WD Wheelbase	87.7 inches 222 cm
4WD Wheelbase	86.6 inches 219 cm
2WD Length	133.5 inches 339 cm
4WD Length	137.6 inches 349 cm
2WD Weight	6614 lbs 3000 kg
4WD Weight	7055 lbs 3200 kg
2WD Ground clearance	17.5 inches 44 cm
4WD Ground clearance	15.4 inches 39 cm
2WD Front tread	55.1 to 74.8 inches 139 to 189 cm
4WD Front tread	57.1 to 74 inches 145 to 187 cm

Fiat 60-88 Height
2WD Hood	56.3 inches 143 cm
4WD Hood	57.7 inches 146 cm
Cab	99.5 inches 252 cm

Photos

Fiat 60-88 tractor photo
