Fiat 800

The Fiat 800 is a tractor produced by Fiat. It is equipped with a 301.5 ci 4.9 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 12 forward and 4 reverse. Operating weight: 6526 lbs 2960 kg.

Overview

	Utility tractor	Utility tractor

Production
Manufacturer	Fiat
Utility tractor

Fiat 800 Engine
Fiat 4.9L 4-cyl diesel
Fuel tank	22.7 gal 85.9 L
Engine details ...

Fiat 800 Transmission
12-speed
Transmission details ...

Fiat 800 Power
Engine	80 hp 59.7 kW
PTO (claimed)	71 hp 52.9 kW

Mechanical
Two-wheel drive
Wet disc brakes
Open operator station.

Tractor hitch
Rear Type	II
Rear lift	4960 lbs 2249 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	92.9 inches 235 cm
Weight	6526 lbs 2960 kg
Front tire	7.50x20
Rear tire	12x38
Full dimensions and tires ...

Engine

Engine Detail — 301.5 ci / 4.9 L Diesel

Manufacturer	Fiat OM CO 3/80
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	301.5 ci 4.9 L
Bore/Stroke	4.33x5.12 inches 110 x 130 mm
Power	80 hp 59.7 kW
Rated RPM	2100
Starter	electric
Starter volts	12

Transmission

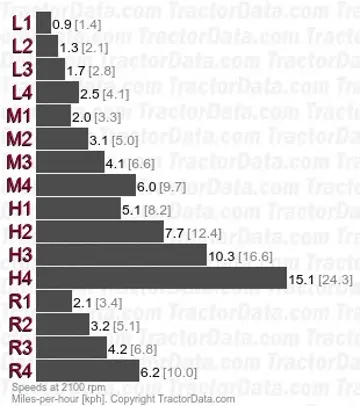

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Four gears in three ranges, plus reverse range.
With 12x38 rear tires.

Dimensions

Fiat 800 Tires
Ag front	7.50x20
Ag rear	12x38
Ag rear	14x34

Dimensions
Wheelbase	92.9 inches 235 cm
Length	159.5 inches 405 cm
Width	76 inches 193 cm
Height (hood)	59.8 inches 151 cm
Weight	6526 lbs 2960 kg

Photos

Fiat 800 tractor photo
