Fiat 80-65

The Fiat 80-65 is a tractor produced by Fiat. It is equipped with a 238.4 ci 3.9 L engine. The listed engine power is Diesel (listed): 78.9 hp / 58.8 kW. Transmission: 16 forward and 8 reverse. Drive type: crawler. Operating weight: 9039 lbs 4100 kg.

Engine Power
Diesel (listed): 78.9 hp / 58.8 kW
Drive & Traction
crawler
Fuel & Capacities
18.5 gal 70.0 L
Transmission
16 forward and 8 reverse
Operating Weight
9039 lbs 4100 kg

Overview

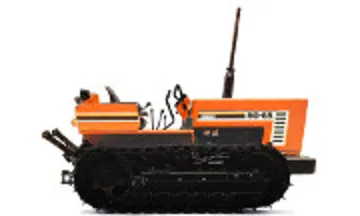

Fiat 80-65 tractor photo
1985 - 1989 65 SeriesAgricultural Crawler tractor 65 Series Agricultural Crawler tractor
Production
Manufacturer
Fiat
Agricultural Crawler tractor
Fiat 80-65 Engine
Fiat 3.9L 4-cyl diesel
Fuel tank
18.5 gal 70.0 L
Engine details ...
Fiat 80-65 Power
Engine
78.9 hp 58.8 kW
Mechanical
Drive
crawler
Tractor hitch
Rear Type
II/I
Rear lift
8201 lbs 3719 kg
Power Take-off (PTO)
Rear PTO Type
540
540/1000
Dimensions & Tracks
Wheelbase
65.2 inches 165 cm
Weight
9039 lbs 4100 kg
15.75-inch tracks
Full dimensions and tracks ...
References

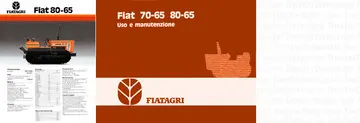

80-65 references literature
80-65 published in 1988, by Fiat
70-65 80-65 (603.64.073.00R2)

Engine

Engine Detail — 238.4 ci / 3.9 L Diesel

Manufacturer
Fiat 8045.05
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
238.4 ci 3.9 L
Bore/Stroke
4.09x4.53 inches 104 x 115 mm
Power
78.9 hp 58.8 kW
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Transmission options
8-speed
16-speed

Transmission — 8 forward and reverse

Gears
8 forward and reverse

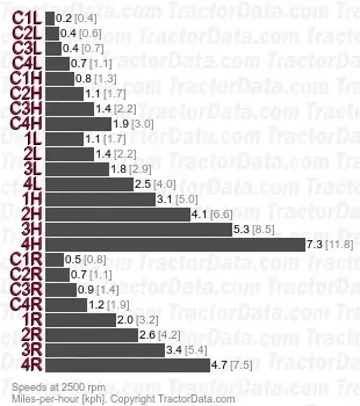

80-65   speeds
Transmission
Gears
16 forward and 8 reverse
Four gears in two ranges forward, one reverse, with additional creeper range.
80-65   speeds

Dimensions

Fiat 80-65 Tracks
Width
15.75 inches 40 cm
Width
14.2 inches 36 cm
Dimensions
Wheelbase
65.2 inches 165 cm
Length
126 inches 320 cm
Width
66.9 inches 169 cm
Height (hood)
47.2 inches 119 cm
Height (ROPS)
87.4 inches 221 cm
Weight
9039 lbs 4100 kg
Ground clearance
10.6 inches 26 cm
Gauge
51.2 inches 130 cm

Photos

Fiat 80-65 tractor photo

Fiat 80-65 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Fiat 80-65 based on its 78.9 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙Heavy DutyAggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 80-65.

Estimated Continuous Field Runtime: 4.5 hrs

Approximately 4.5 hours of continuous field operation at ~75% rated power on a full tank (18.5 gal / 70 L).

Estimated 75% Load Fuel Burn~4.1 gal/hr (15.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Fiat 80-65 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 80-65.

Converted Equivalents:

Horsepower (HP)78.9 hp
Kilowatts (kW)58.8 kW
Metric Horsepower (PS / CV)80 PS
