Fiat 80-75
The Fiat 80-75 is a tractor produced by Fiat. It is equipped with a 238.4 ci 3.9 L engine. The rated power output is 78.9 hp 58.8 kW. Transmission: 16 forward and 8 reverse. Drive type: crawler. Operating weight: 8708 lbs 3949 kg.
Engine Power
78.9 hp
58.8 kW
Drive & Traction
crawler
Fuel & Capacities
Diesel
Transmission
16 forward and 8 reverse
Operating Weight
8708 lbs
3949 kg
Fiat 80-75 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1989 - 1992
75 SeriesAgricultural Crawler tractor |
|---|---|
1989 - 1992 | |
75 Series | |
Agricultural Crawler tractor | |
Production | |
|---|---|
Manufacturer | Fiat |
Agricultural Crawler tractor | |
Fiat 80-75 Engine | |
|---|---|
Fiat 3.9L 4-cyl diesel | |
Engine details ...  |
Fiat 80-75 Power | |
|---|---|
Engine | 78.9 hp
58.8 kW |
Mechanical | |
|---|---|
Drive | crawler |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 8201 lbs
3719 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tracks | |
|---|---|
Wheelbase | 65.2 inches
165 cm |
Weight | 8708 lbs
3949 kg |
15.75-inch tracks | |
Full dimensions and tracks ...  | |

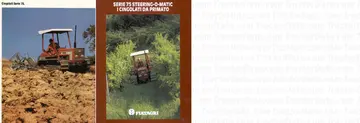

References | |
|---|---|
 | |
Serie 75 published by Fiat | |
Serie 75 published in 1989, by Fiat |
Engine
Engine Detail — 238.4 ci / 3.9 L Diesel
Manufacturer | Fiat 8045.05 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 238.4 ci
3.9 L |
Bore/Stroke | 4.09x4.53 inches
104 x 115 mm |
Power | 78.9 hp
58.8 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
8-speed | |
16-speed |
Transmission — 8 forward and reverse
Gears | 8 forward and reverse |
Transmission — 16 forward and 8 reverse
Gears | 16 forward and 8 reverse |
Dimensions
Fiat 80-75 Tracks | |
|---|---|
Width | 15.75 inches
40 cm |
Width | 14.2 inches
36 cm |
Dimensions | |
|---|---|
Wheelbase | 65.2 inches
165 cm |
Length | 126 inches
320 cm |
Width | 66.9 inches
169 cm |
Height (hood) | 47.2 inches
119 cm |
Height (ROPS) | 87.4 inches
221 cm |
Weight | 8708 lbs
3949 kg |
Ground clearance | 10.6 inches
26 cm |
Gauge | 51.2 inches
130 cm |
Photos

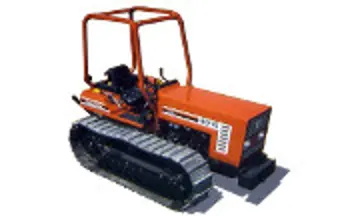

Fiat 80-75 tractor photo
Fiat 80-75 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 80-75.
Converted Equivalents:
Horsepower (HP)78.9 hp
Kilowatts (kW)58.8 kW
Metric Horsepower (PS / CV)80 PS
