Fiat 82-94
The Fiat 82-94 is a tractor produced by Fiat. It is equipped with a 238.5 ci 3.9 L engine. The listed engine power is Diesel (listed): 80 hp / 59.7 kW. Transmission: 24 forward and 12 reverse. Operating weight: 7650 to 8378 pounds.
Engine Power
Diesel (listed): 80 hp / 59.7 kW
Fuel & Capacities
24.6 gal
93.1 L
Transmission
24 forward and 12 reverse
Operating Weight
7650 to 8378 pounds
Overview
 | 1993 - 1996
94 SeriesUtility tractor
94 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Utility tractor | |
Fiat 82-94 Engine | |
|---|---|
Fiat 3.9L 4-cyl diesel | |
Fuel tank | 24.6 gal
93.1 L |
Engine details ...  | |
Fiat 82-94 Power | |
|---|---|
Engine | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Cab standard. Four-post ROPS canopy available. | |
Hydraulics | |
|---|---|
Pump flow | 11.8 gpm
44.7 lpm |
Tractor hitch | |
|---|---|
Rear lift | 7717 lbs
3500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 92.1 inches
233 cm |
4WD Wheelbase | 91.1 inches
231 cm |
Weight | 7650 to 8378 pounds |
Front tire | 7.50-18 |
2WD Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
94 Series published in 1993, by Fiat |
Engine
Engine Detail — 238.5 ci / 3.9 L Diesel
Manufacturer | Fiat 8045.05 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 238.5 ci
3.9 L |
Bore/Stroke | 4.0945x4.53 inches
104 x 115 mm |
Power | 80 hp
59.7 kW |
Rated RPM | 2500 |
Transmission
Transmission options | |
|---|---|
12-speed | |
20-speed creeper | |
24-speed two-speed power shift |
Transmission — 12 forward and reverse
Gears | 12 forward and reverse |
Transmission | |
Type | creeper |
Gears | 20 forward and 12 reverse |

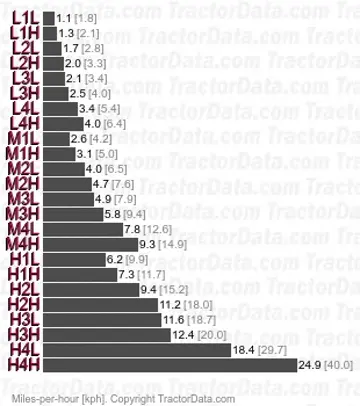

Transmission — 24 forward and 12 reverse two-speed power shift
Type | two-speed power shift |
Gears | 24 forward and 12 reverse |
 | |
Dimensions
Fiat 82-94 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-18. Rear: 13.6-38 |
4WD Standard tires (ag) | Front: 13.6/12-24. Rear: 16.9/14-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 92.1 inches
233 cm |
4WD Wheelbase | 91.1 inches
231 cm |
2WD Length | 139.8 inches
355 cm |
4WD Length | 144.9 inches
368 cm |
Height (hood) | 56.7 inches
144 cm |
Height (cab) | 103 inches
261 cm |
2WD Weight | 7650 lbs
3470 kg |
4WD Weight | 8378 lbs
3800 kg |
2WD Front tread | 55.1 to 75.6 inches
139 to 192 cm |
4WD Front tread | 61.5 to 74.8 inches
156 to 189 cm |
Rear tread | 55.1 to 82.7 inches
139 to 210 cm |
Photos
Fiat 82-94DT, right side.
Fiat 82-94DT, left side.
Recommended Implements & Sizing Guide
Engineering recommendations for Fiat 82-94 based on its 80 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 82-94.
Estimated Continuous Field Runtime: 5.9 hrs
Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (24.6 gal / 93.1 L).
Estimated 75% Load Fuel Burn~4.2 gal/hr (15.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fiat 82-94 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 82-94.
Converted Equivalents:
Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.1 PS
Direct Competitor Comparison
Compare Fiat 82-94 against same-era industry alternatives in the same horsepower class.
Current Model
Fiat
Fiat 82-94
Engine Power:Diesel (listed): 80 hp / 59.7 kW
★ Baseline Reference
